Spare Tire Support Bracket Replacement

Spare Tire Support Bracket Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body.

1. Remove the spare tire Spare Tire Hoist Replacement.

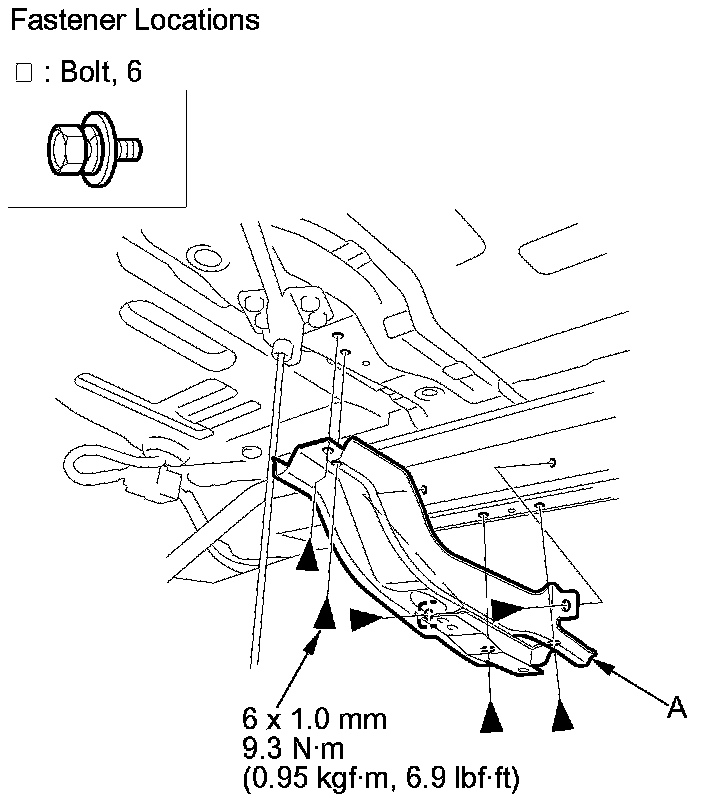

2. Remove the bolts, then remove the spare tire support bracket (A).






3. Install the bracket in the reverse order of removal.
