Home >> Acura >> 2010 >> ZDX V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Switch >> Diagrams >> Driver's Power Lumbar Support Switch Connector View

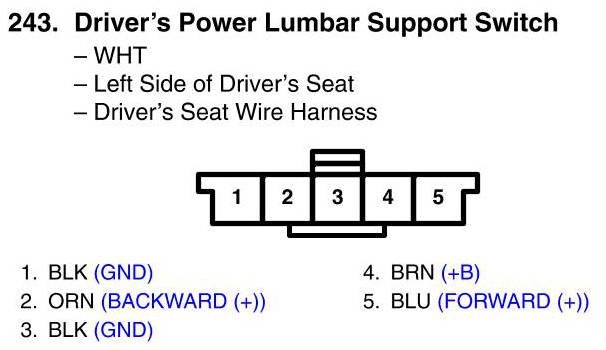

Driver's Power Lumbar Support Switch Connector View
