Panoramic Glass Roof Deflector Replacement

Panoramic Glass Roof Deflector Replacement

1. Open the moving glass panel fully.

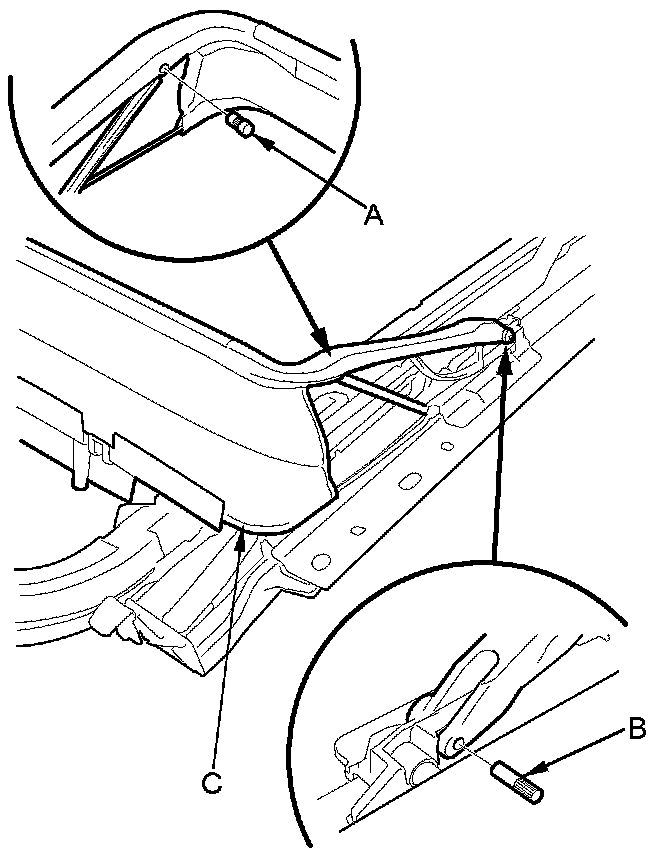

2. Remove the short pin (A) and the long pin (B) toward inside of the deflector (C) with a 3 mm driver pin on both sides.






3. Lift the deflector arm (A), and release the deflector spring (B) from the arm on both sides.

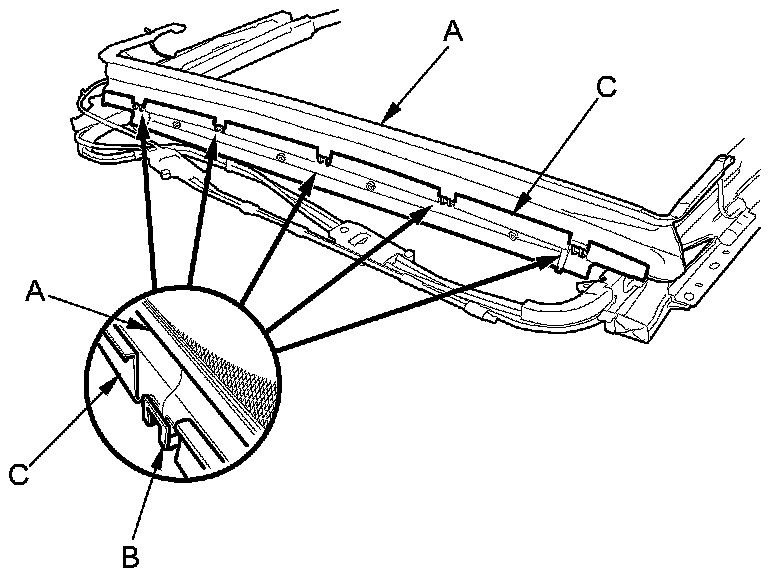

4. Release the deflector (A) from the hooks (B) of the deflector catcher (C).






5. Release the deflector lower edge wire (A) on both sides, then remove the deflector (B).






6. Install the deflector in the reverse order of removal, and push the hooks and the pins into place securely.
