Keyless Access LF Antenna (Front Interior) Replacement




Keyless Access LF Antenna (Front Interior) Replacement

1. Remove the center console panel Center Console Panel Removal/Installation.

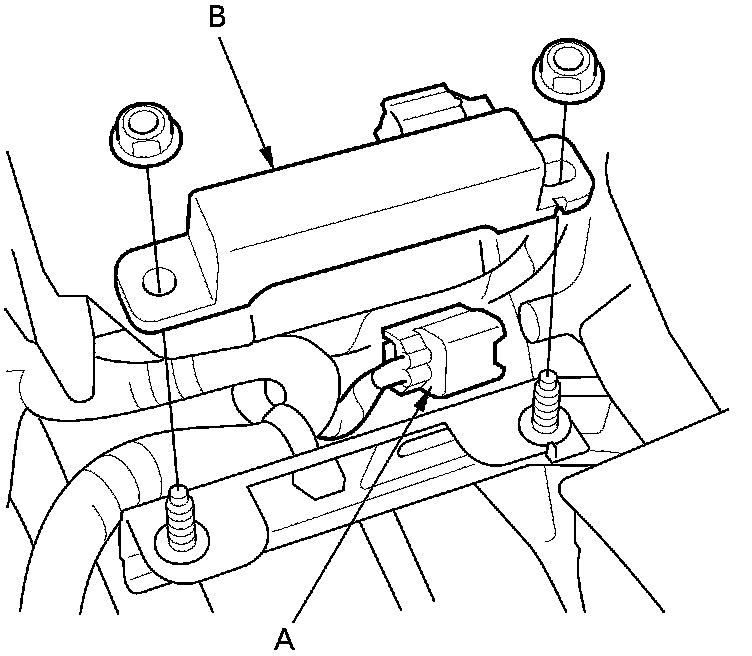

2. Disconnect the 2P connector (A) from the front interior LF antenna (B).





3. Remove the two nuts from the front interior LF antenna.

4. Install the antenna in the reverse order of removal.
