Center Console Beverage Holder Replacement

Center Console Beverage Holder Replacement

NOTE: Take care not to scratch the console.

1. Remove the center console Center Console Removal/Installation.

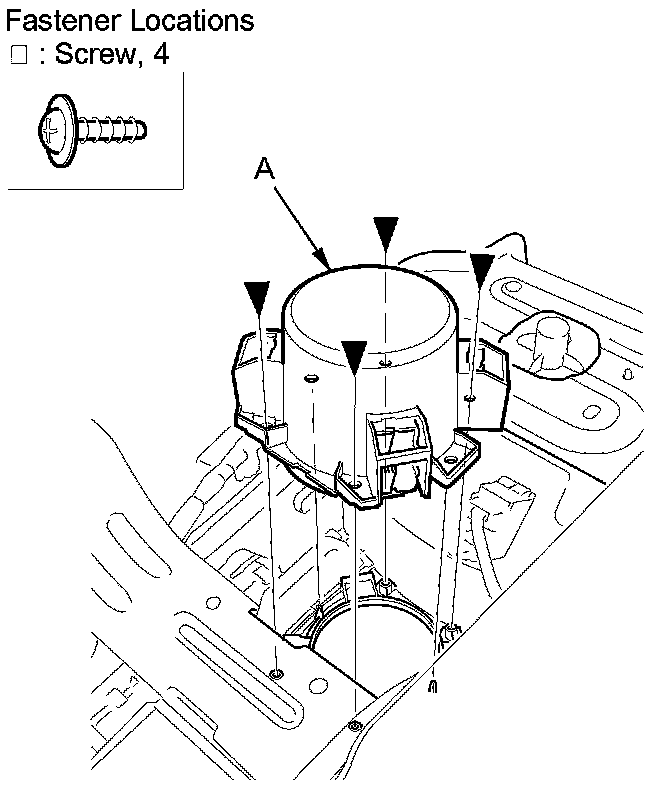

2. From back of the center console, remove the screws and console beverage holder (A).






3. Install the beverage holder in the reverse order of removal.
