Rear Wheelwell Gusset Replacement

Rear Wheelwell Gusset Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the body or the related parts.

1. Remove these items:

- Rear inner fender, as needed Service and Repair
- Rear cargo support beam Rear Cargo Support Beam Replacement

2. Pull back the carpet as needed.

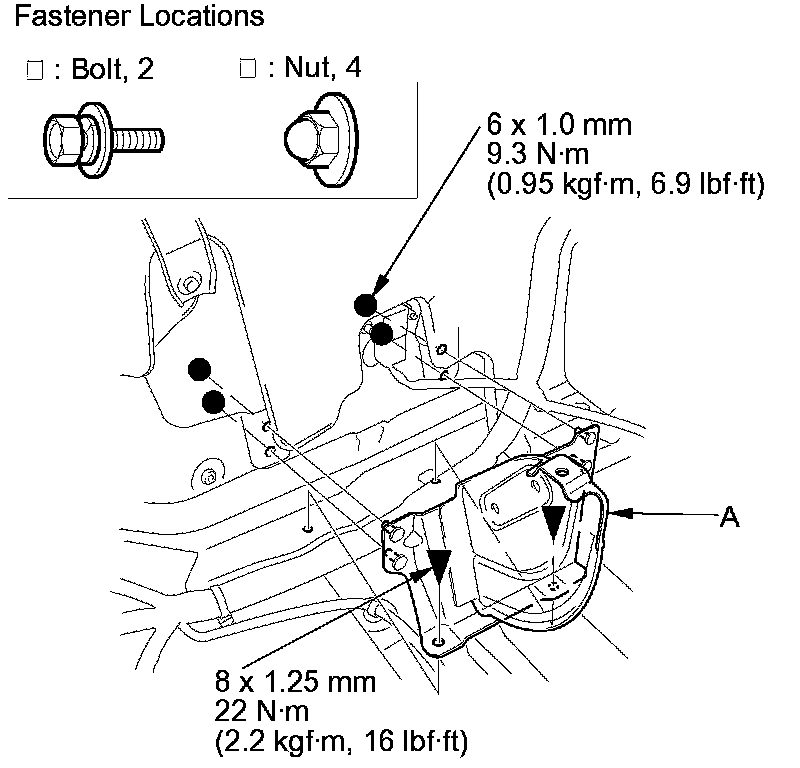

3. Remove the rear wheelwell gusset (A).

1. Remove the bolts.

2. From outside the vehicle, remove the nuts.





4. Install the gusset in the reverse order of removal.
