Amplifier: Service and Repair




Stereo Amplifier Removal/Installation

1. Remove the passenger's dashboard undercover Passenger's Dashboard Undercover Removal/Installation, and the glove box Glove Box Removal/Installation.

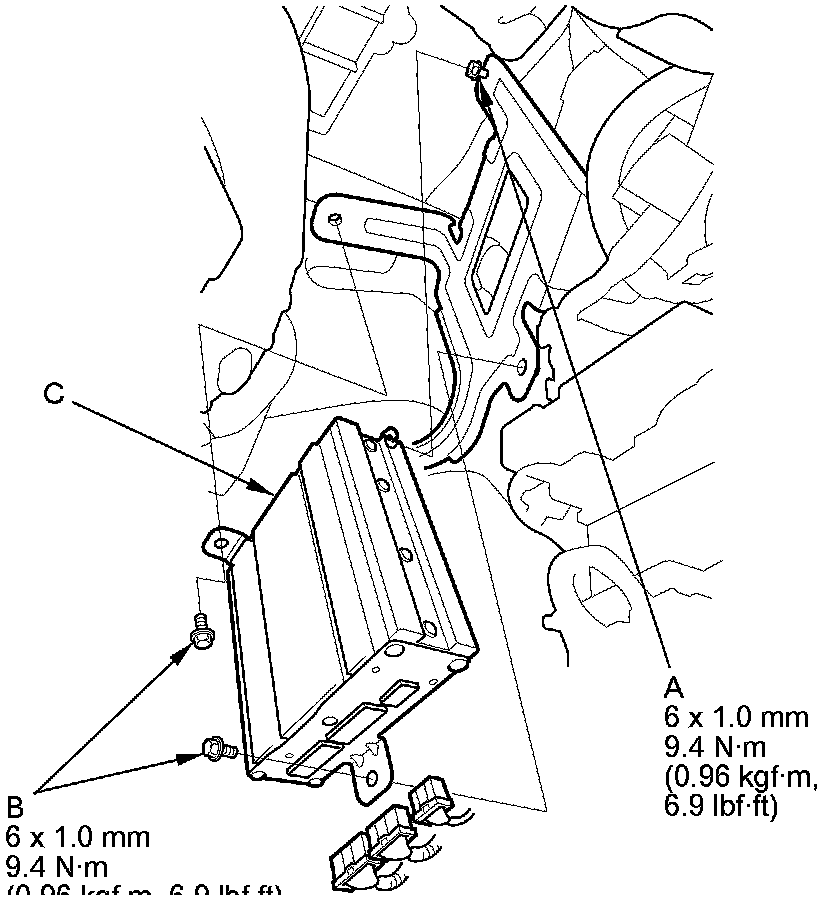

2. Loosen the bolt (A), and remove the bolts (B).





3. Disconnect the connectors from the stereo amplifier (C), and remove it.

4. Install the stereo amplifier in the reverse order of removal.
