Lower Transmission Mount Removal and Installation (M/T)

Lower Transmission Mount Removal and Installation

Removal-M/T model

1. Remove the splash shield Front Splash Shield Replacement.

2. Lift and support the engine with a jack and a wood block under the transmission.

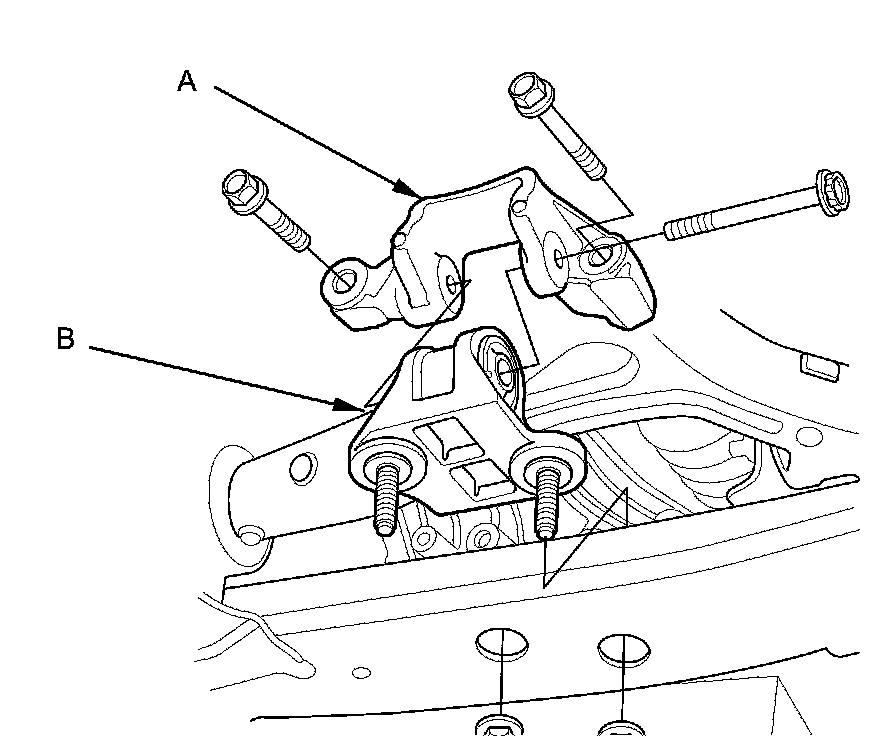

3. Remove the lower transmission mount bracket (A), then remove the lower transmission mount (B).

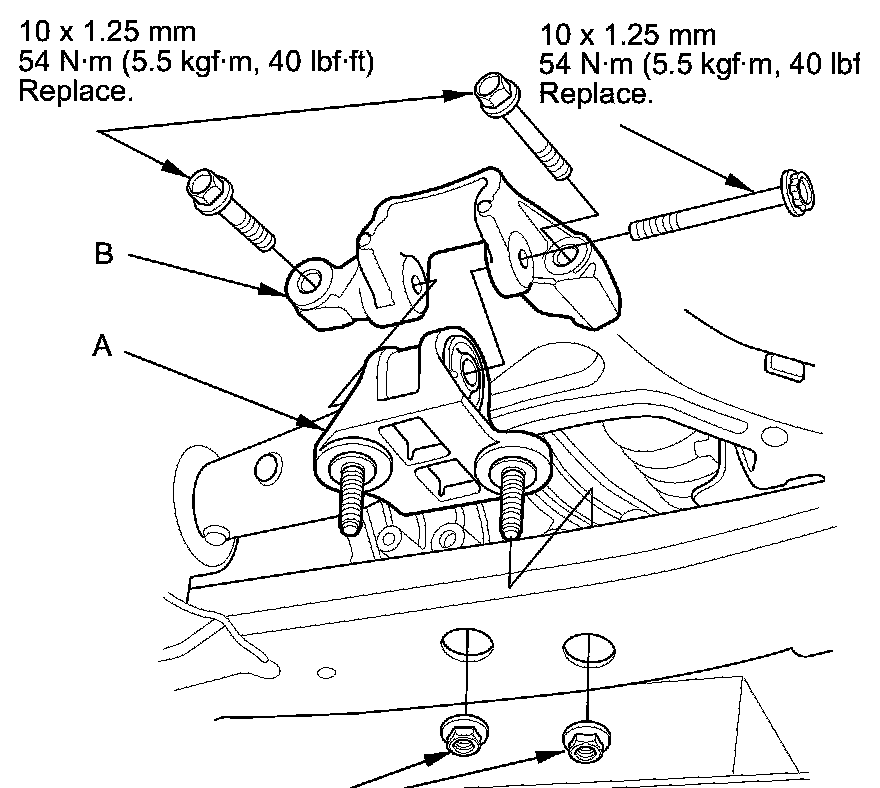

Installation-M/T model

1. Install the lower transmission mount (A).





2. Loosely install the lower transmission mount bracket (B).

3. Remove the jack and the wood block.

4. Tighten the lower transmission mount bracket mounting bolts and the lower transmission mount mounting nuts.

5. Install the splash shield Front Splash Shield Replacement.
