A/T Gear Position Indicator Replacement




A/T Gear Position Indicator Replacement

1. Remove the A/T shift panel Center Console Panel Removal/Installation.

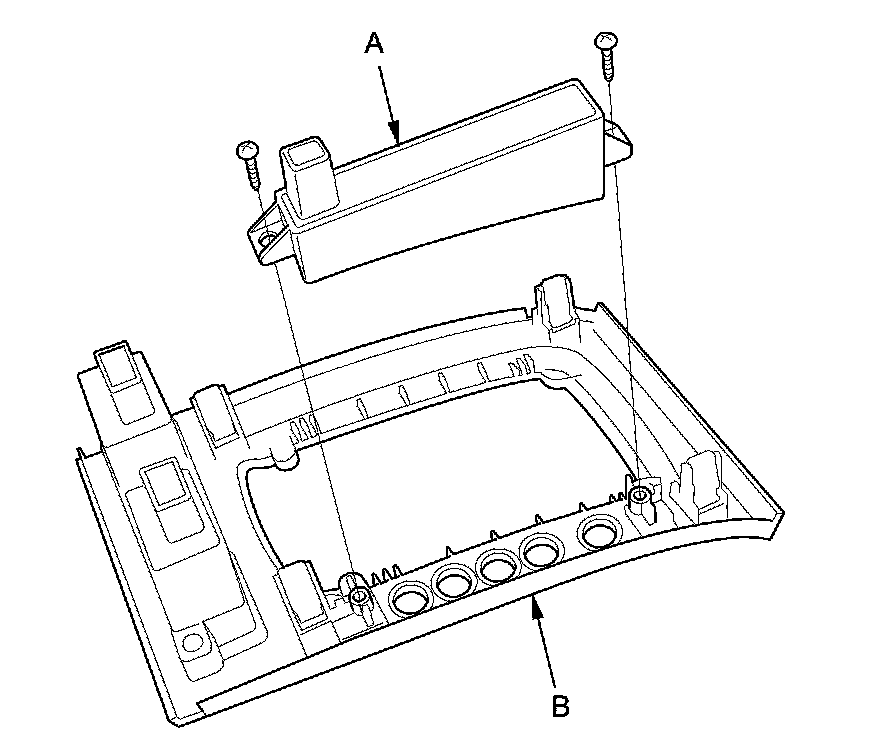

2. Remove the A/T gear position indicator (A) from the A/T shift panel (B).





3. Install a new A/T gear position indicator with the screws.

4. Install the A/T shift panel Center Console Panel Removal/Installation.
