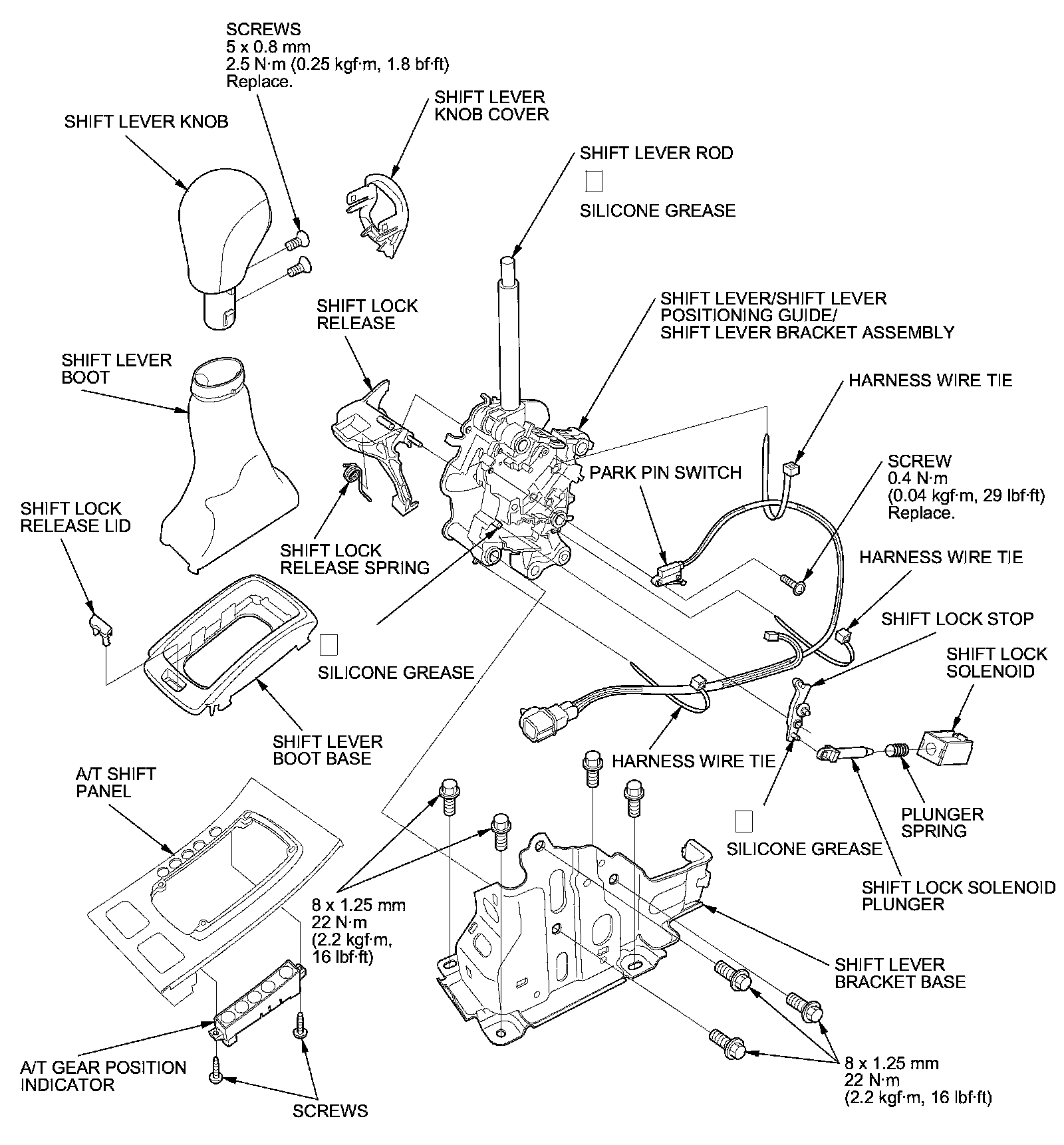

A/T Shift Lever Disassembly/Reassembly




A/T Shift Lever Disassembly/Reassembly

NOTE: Make sure not to get any silicone grease on the terminal part of the connectors and switches, especially if you have silicone grease on your hands or gloves.
