A/T Housing Secondary Shaft ATF Feed Pipe Cap Installation

A/T Housing Secondary Shaft ATF Feed Pipe Cap Installation

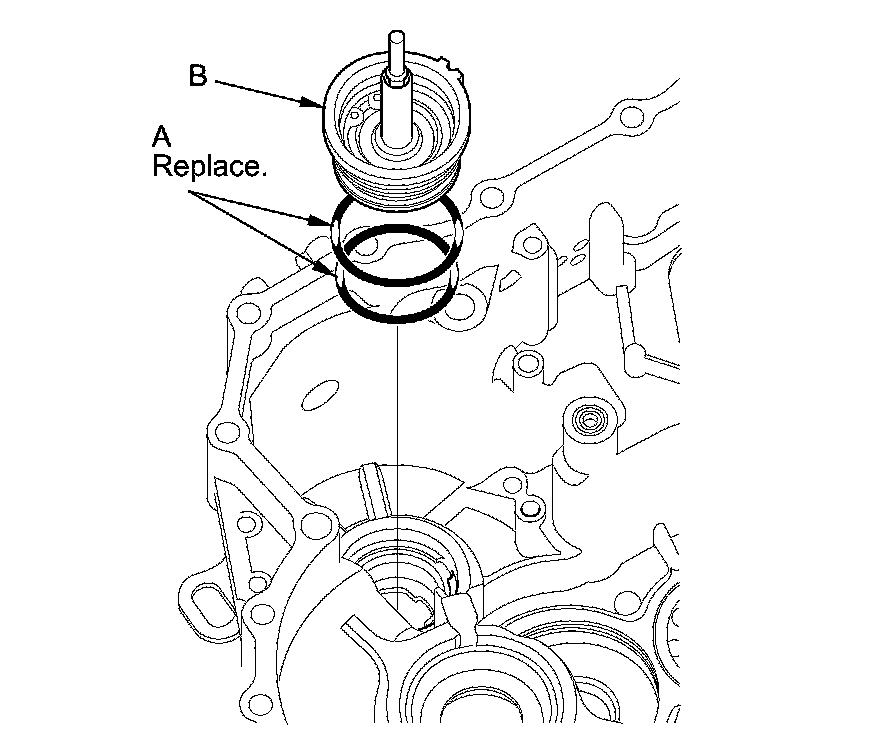

1. Install new O-rings (A) on the ATF feed pipe cap (B).





2. Install the ATF feed pipe cap in the transmission housing. Do not pinch the O-rings.
