A/T Housing Main Shaft Bearing Removal

A/T Housing Mainshaft Bearing Removal

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Attachment, 78 x 80 mm 07NAD-PX40100

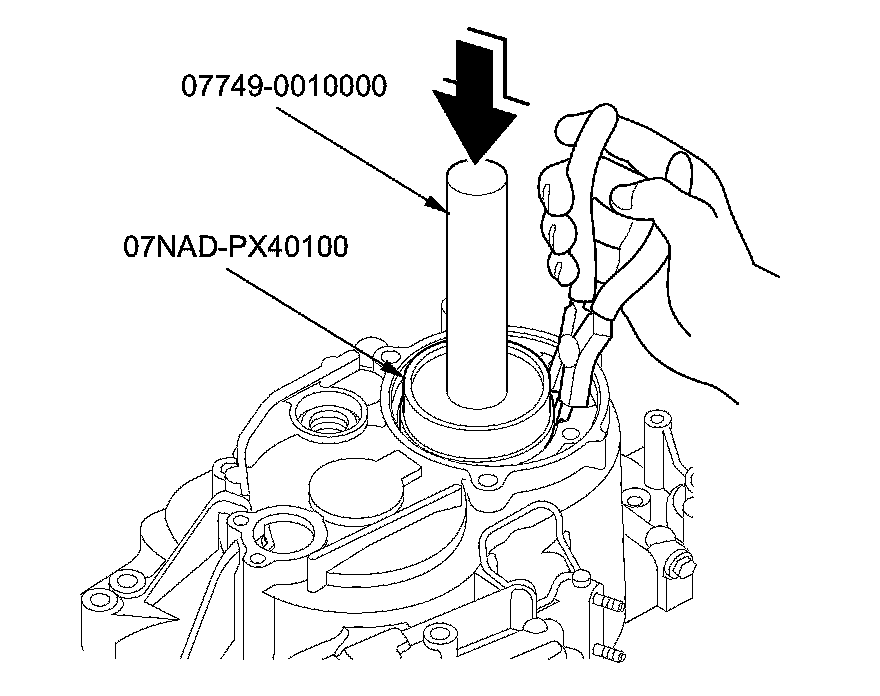

1. To remove the mainshaft bearing, expand the snap ring using snap ring pliers, then push the bearing out. Do not remove the snap ring unless it is necessary to clean the groove in the transmission housing.
