A/T Differential Carrier and Final Driven Gear Replacement

A/T Differential Carrier and Final Driven Gear Replacement

NOTE: Inspect and adjust the carrier bearing preload whenever the differential carrier is replaced.

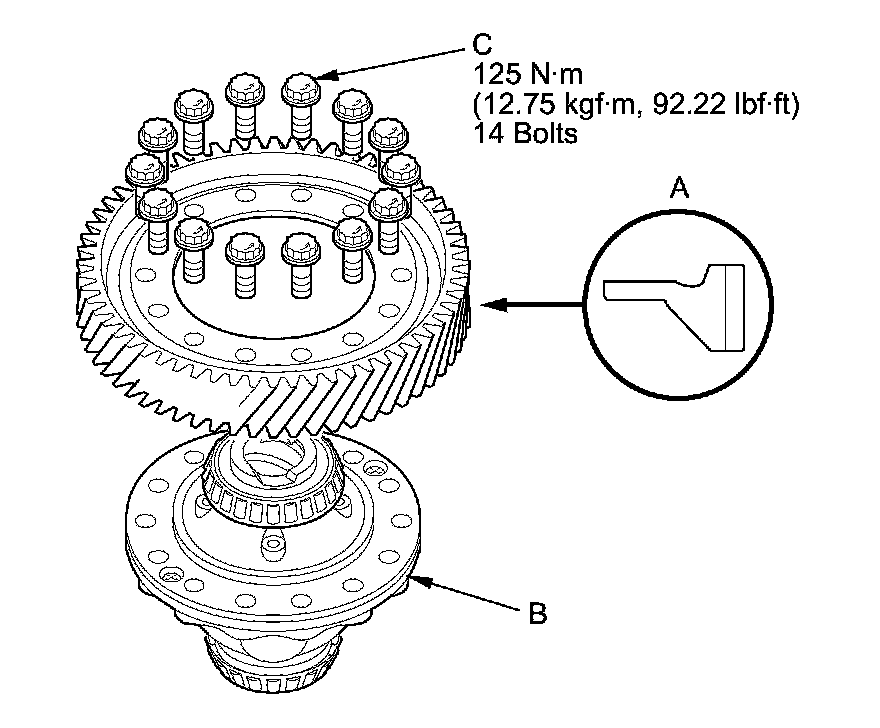

1. Remove the final driven gear (A) from the differential carrier (B).

NOTE: The final driven gear bolts (C) have left-hand threads.





2. Install the final driven gear on the differential carrier in the direction shown.

3. Tighten the bolts to the specified torque in a crisscross pattern in at least two steps.
