Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

1. Raise the vehicle on a lift, or apply the parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.

2. Remove the splash shield.

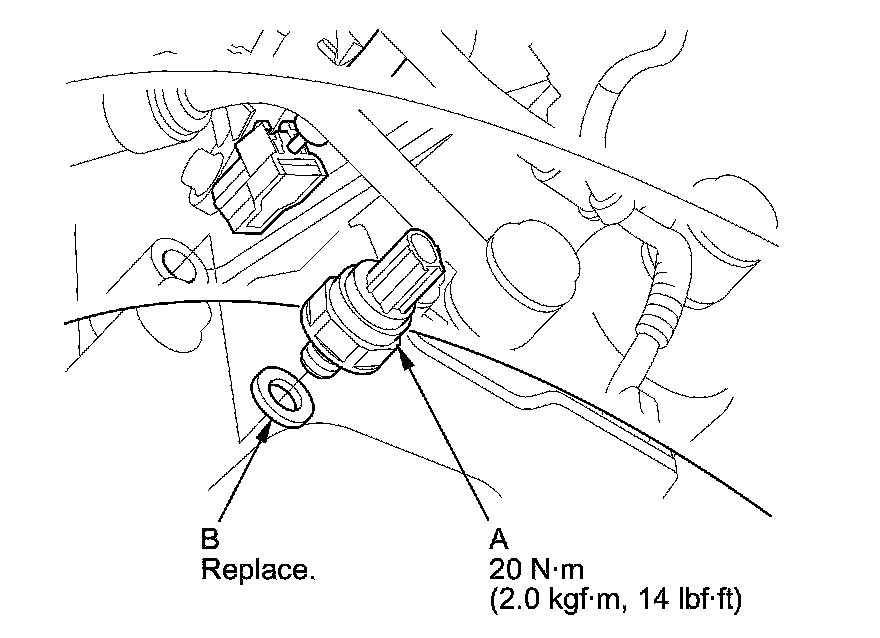

3. Disconnect the transmission fluid pressure switch B (3rd clutch) connector, and remove the transmission fluid pressure switch B (3rd clutch) (A).





4. Install a new transmission fluid pressure switch B (3rd clutch) and a new sealing washer (B), and tighten the switch.

5. Check the connectors for rust, dirt, or oil, and clean or repair if necessary, then connect the connectors securely.

6. Install the splash shield.
