Transmission Fluid Pressure Switch A (2nd Clutch) Replacement

Transmission Fluid Pressure Switch A (2nd Clutch) Replacement

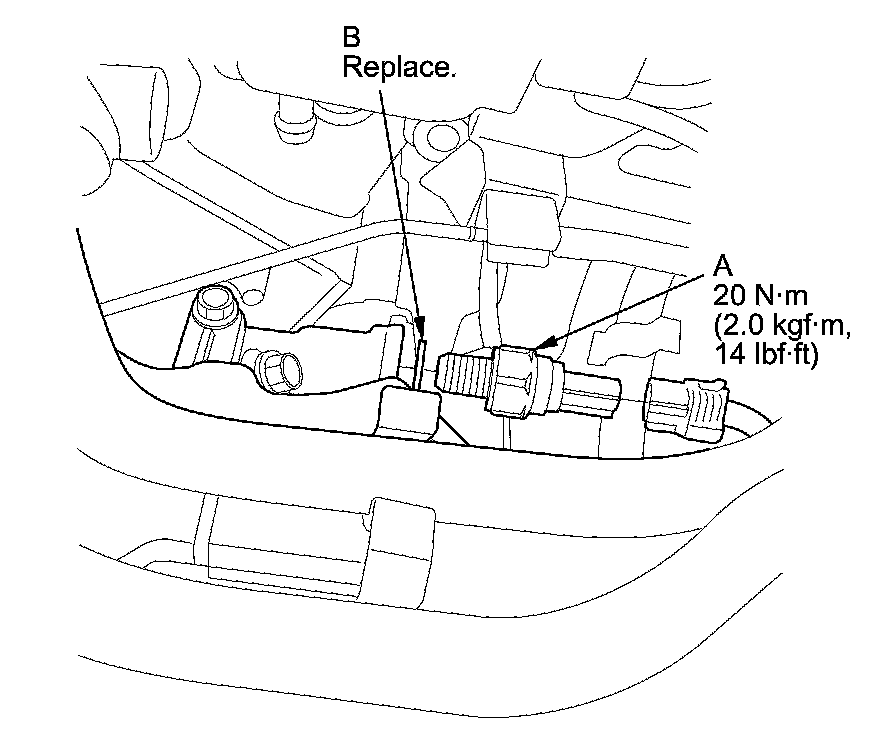

1. Disconnect the transmission fluid pressure switch A (2nd clutch) connector, and remove the transmission fluid pressure switch A (2nd clutch) (A).





2. Install a new transmission fluid pressure switch A (2nd clutch) and a new sealing washer (B), and tighten the switch.

3. Check the connectors for rust, dirt, or oil, and clean or repair if necessary, then connect the connectors securely.

4. Connect the connector securely.
