Positive Crankcase Ventilation Valve: Service and Repair

PCV Valve Replacement

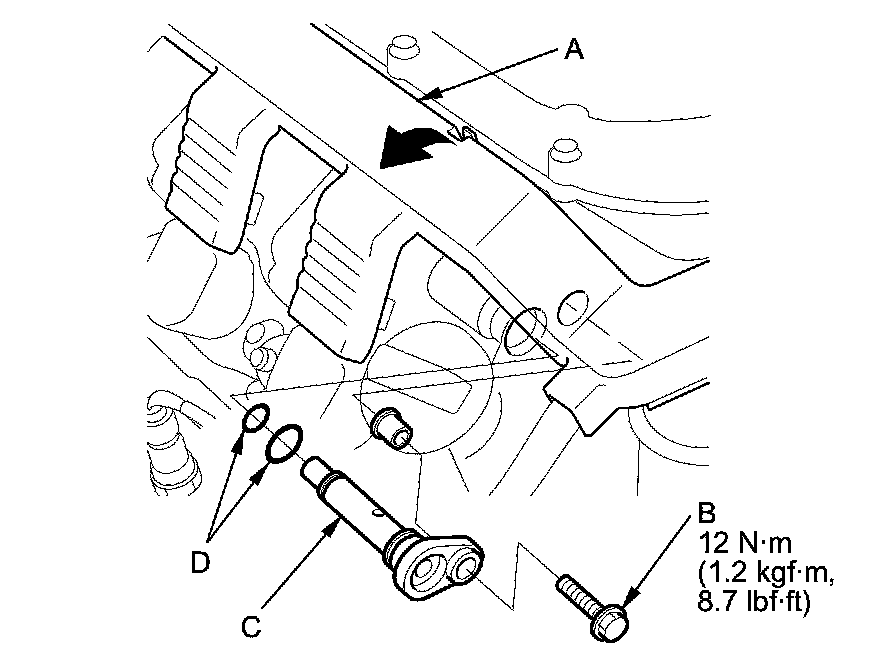

1. Lift up the harness cover (A).





2. Remove the bolt (B).

3. Remove the PCV valve (C).

NOTE: Do not to spill oil on the hot exhaust manifold.

4. Install the parts in the reverse order of removal.

NOTE:

- When installing a new PCV valve, make sure the O-rings (D) are in place.
- When installing a used PCV valve, use new O-rings.
