Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Oxygen Sensor >> Diagrams >> Front Secondary HO2S (B2, S2) Connector View

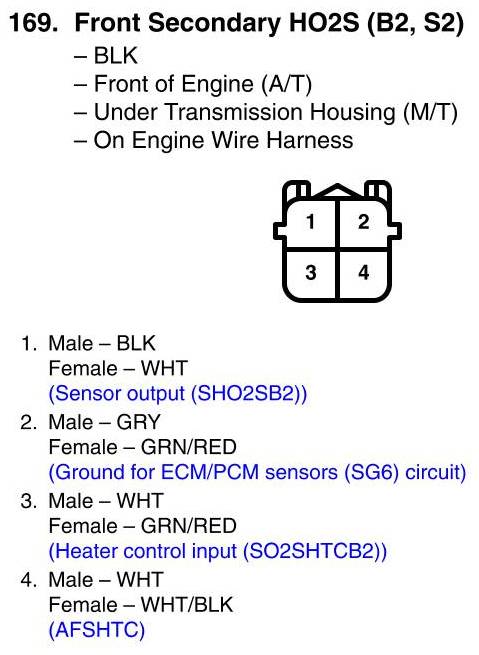

Front Secondary HO2S (B2, S2) Connector View
