LEMON Manuals
: Even more car manuals for everyone
Home
>>
Acura
>>
2010
>>
TL FWD V6-3.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Application and ID
>>

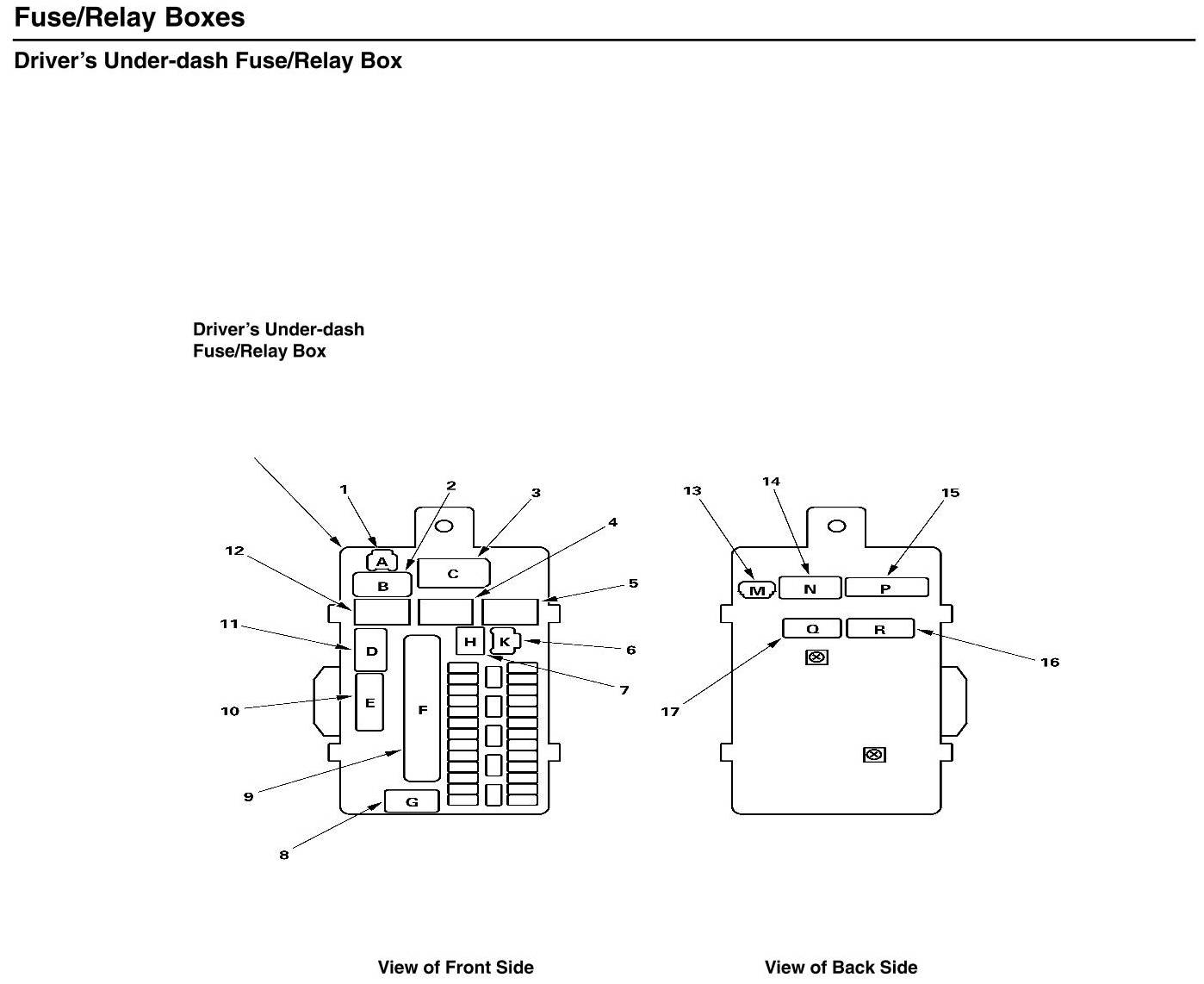

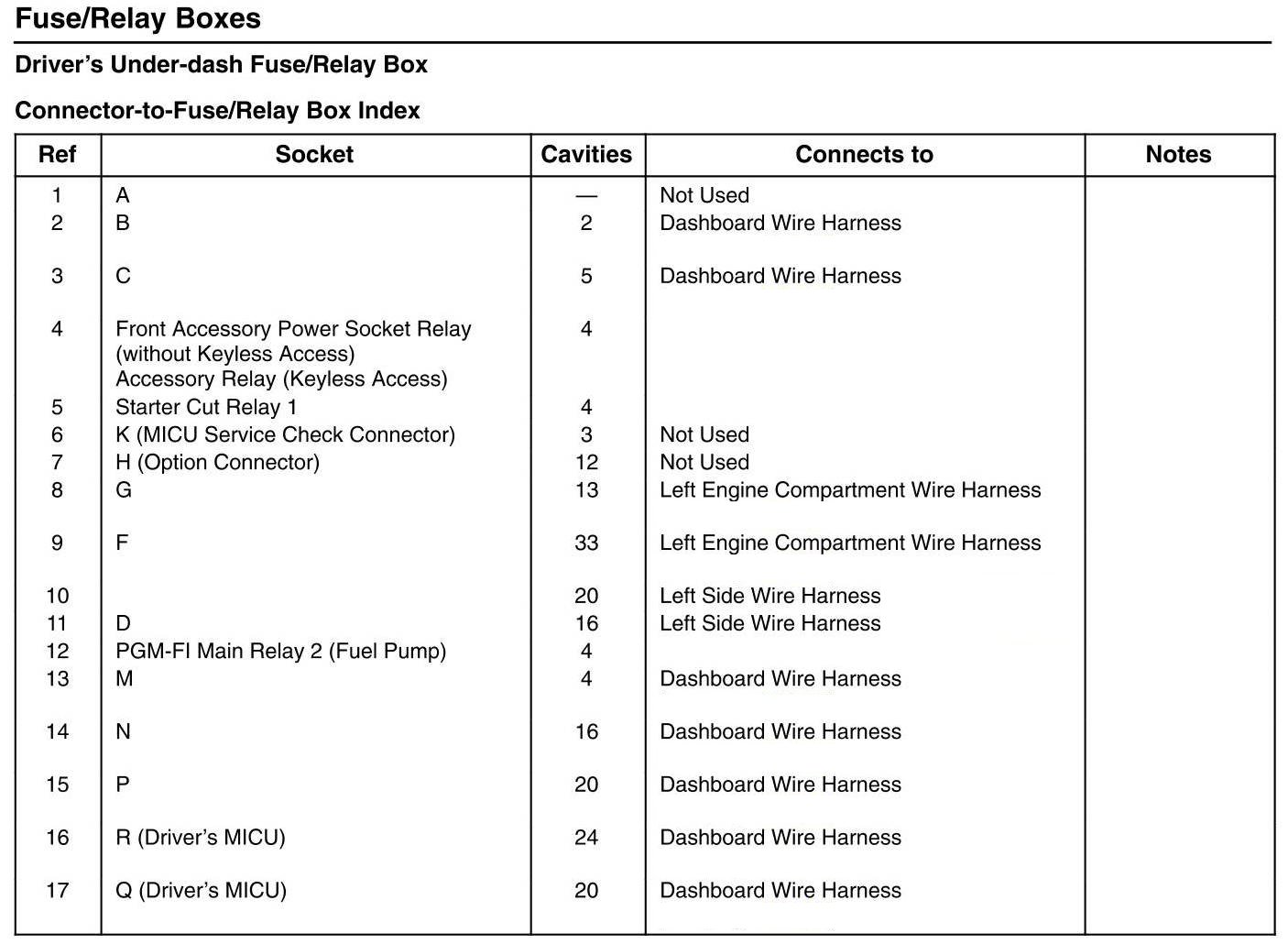

Driver's Under-Dash Fuse/Relay Box - Connector-to-Fuse/Relay Box Index
Driver's Under-Dash Fuse/Relay Box - Connector-to-Fuse/Relay Box Index
