Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Application and ID >> Passenger's Under-Dash Fuse/Relay Box - Fuse-to-Components Index

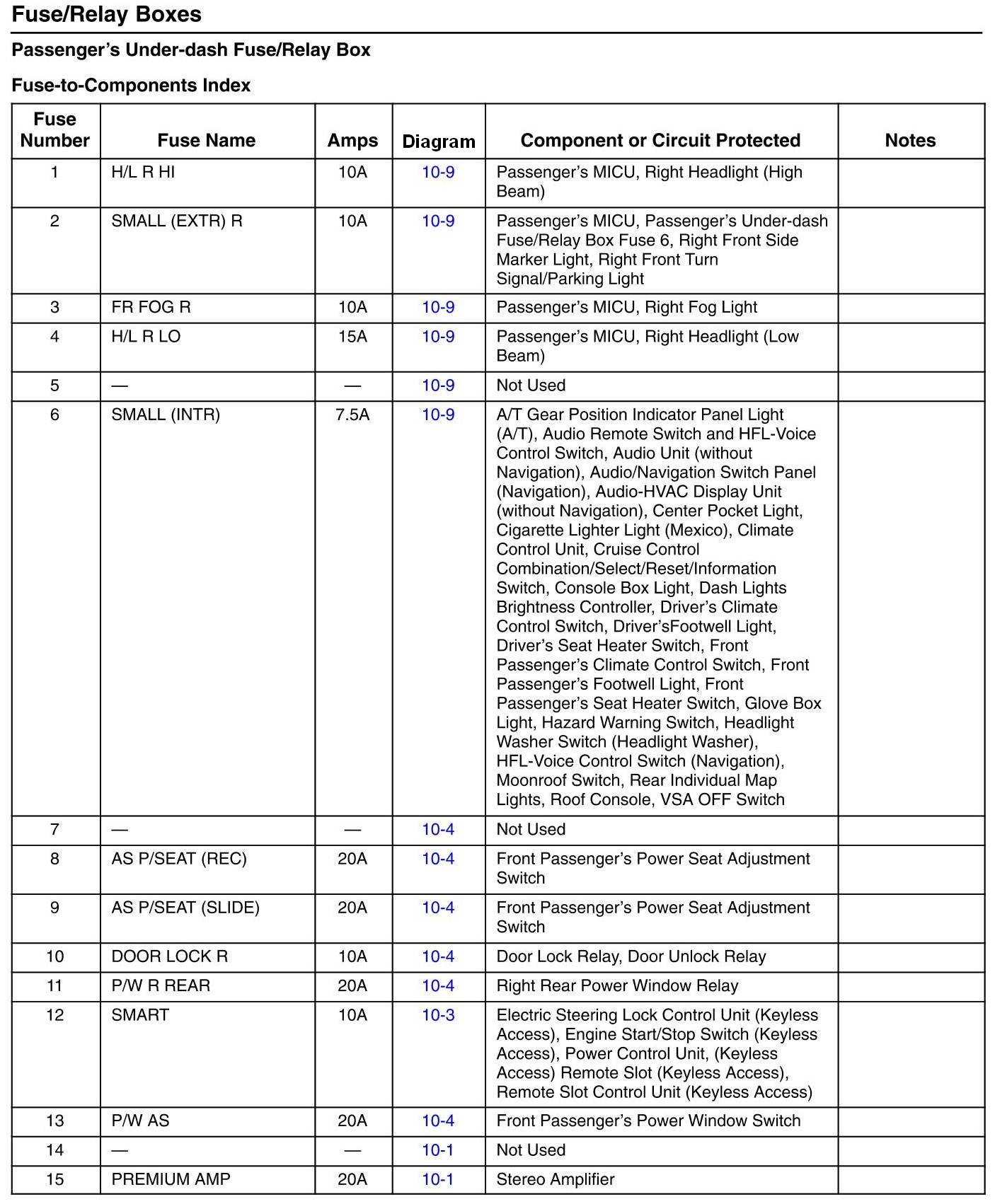

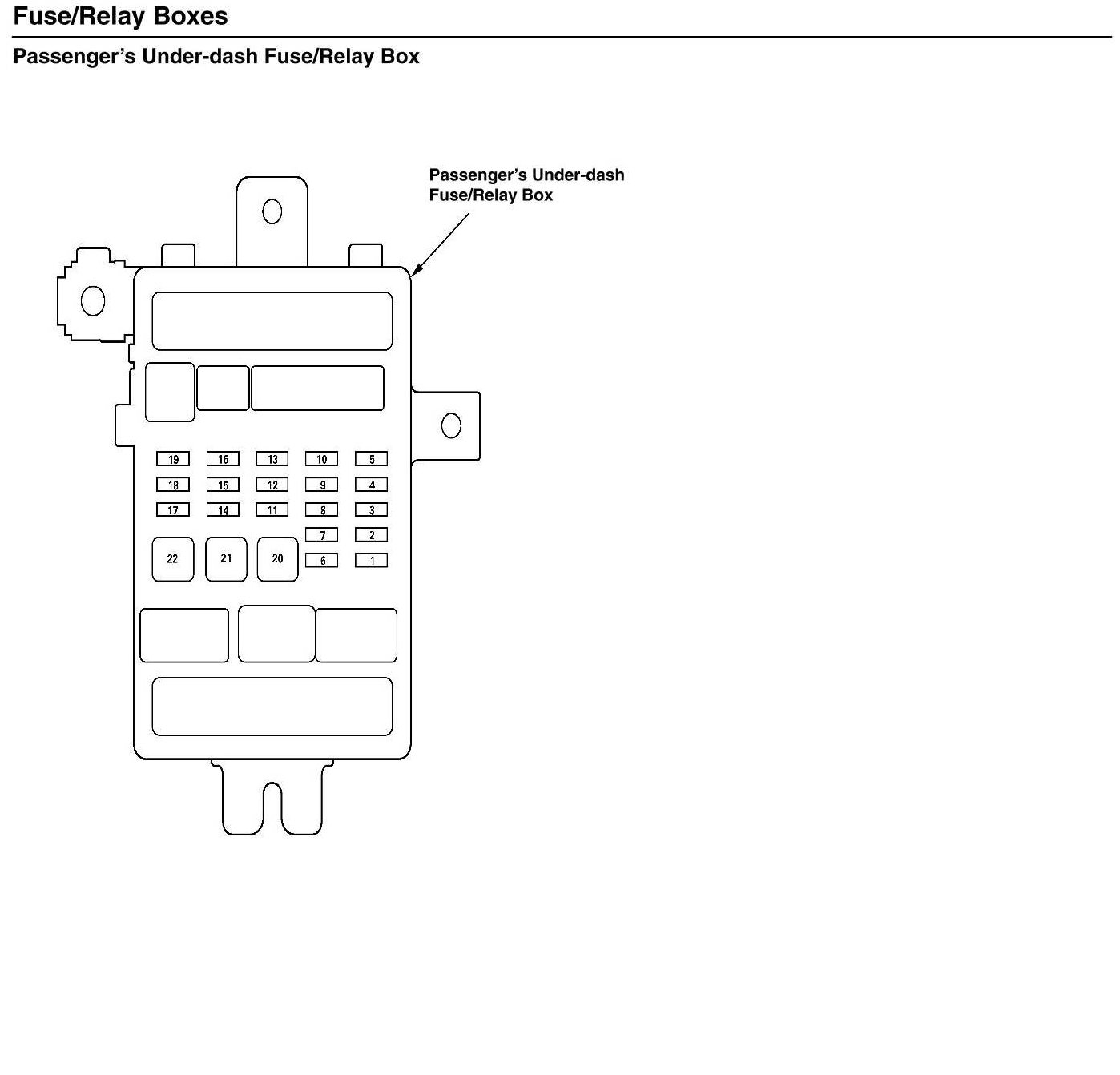

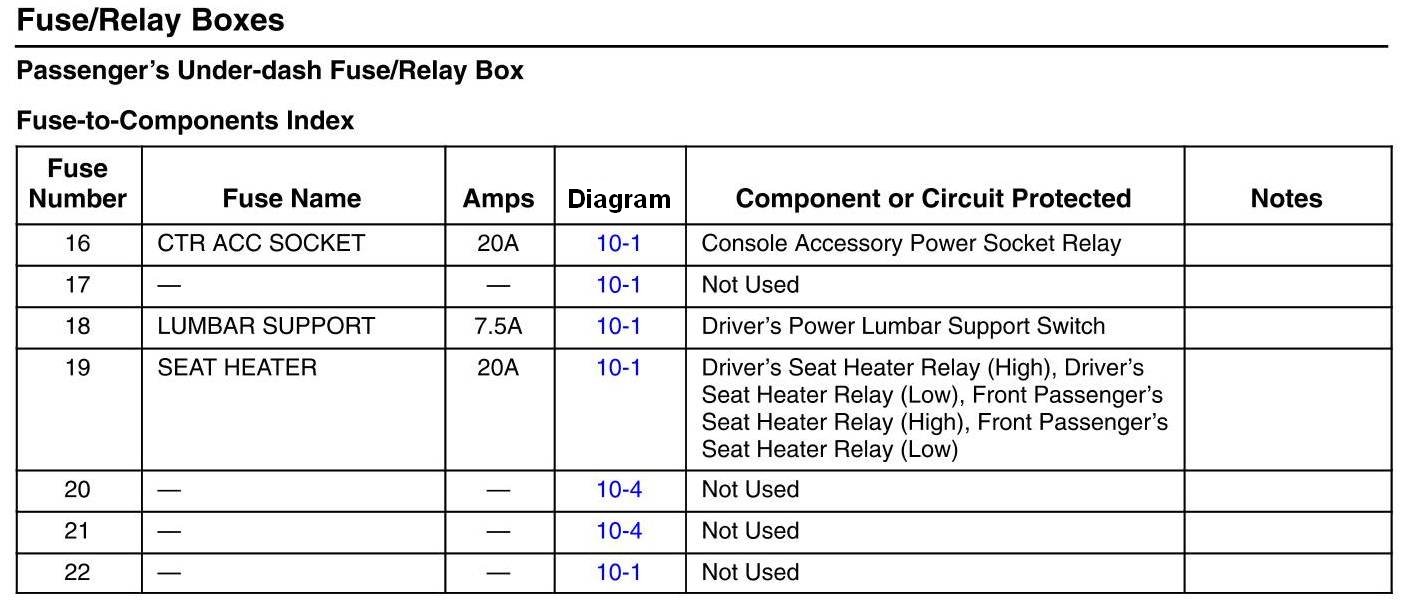

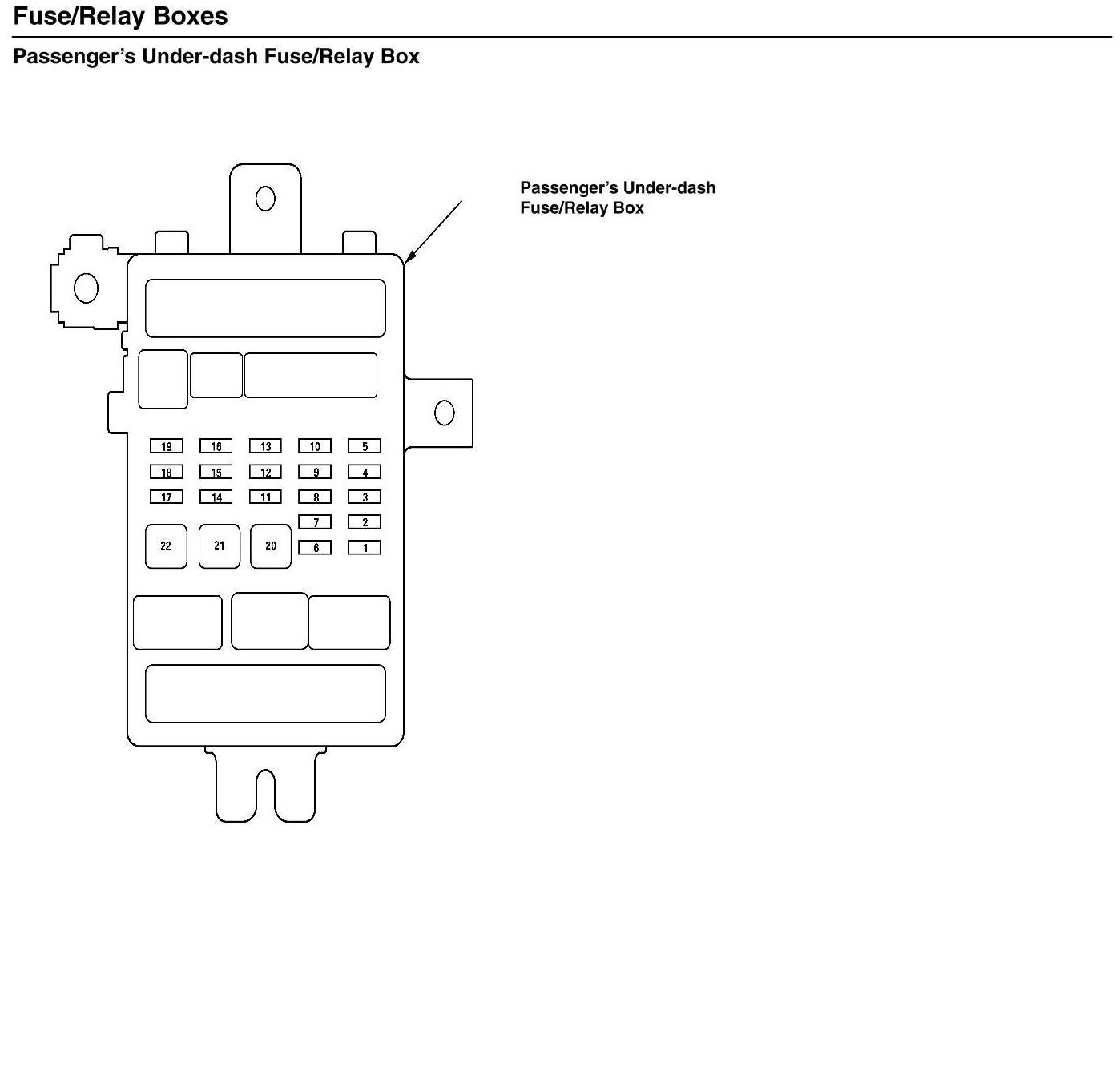

Passenger's Under-Dash Fuse/Relay Box - Fuse-to-Components Index
