Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Locations >> Harness Locations >> Starter Cable, Battery Ground Cable, Transmission Ground Cable, and Engine Ground Cable Connector and Harness Locations >> Connector to Harnesses (A/T)

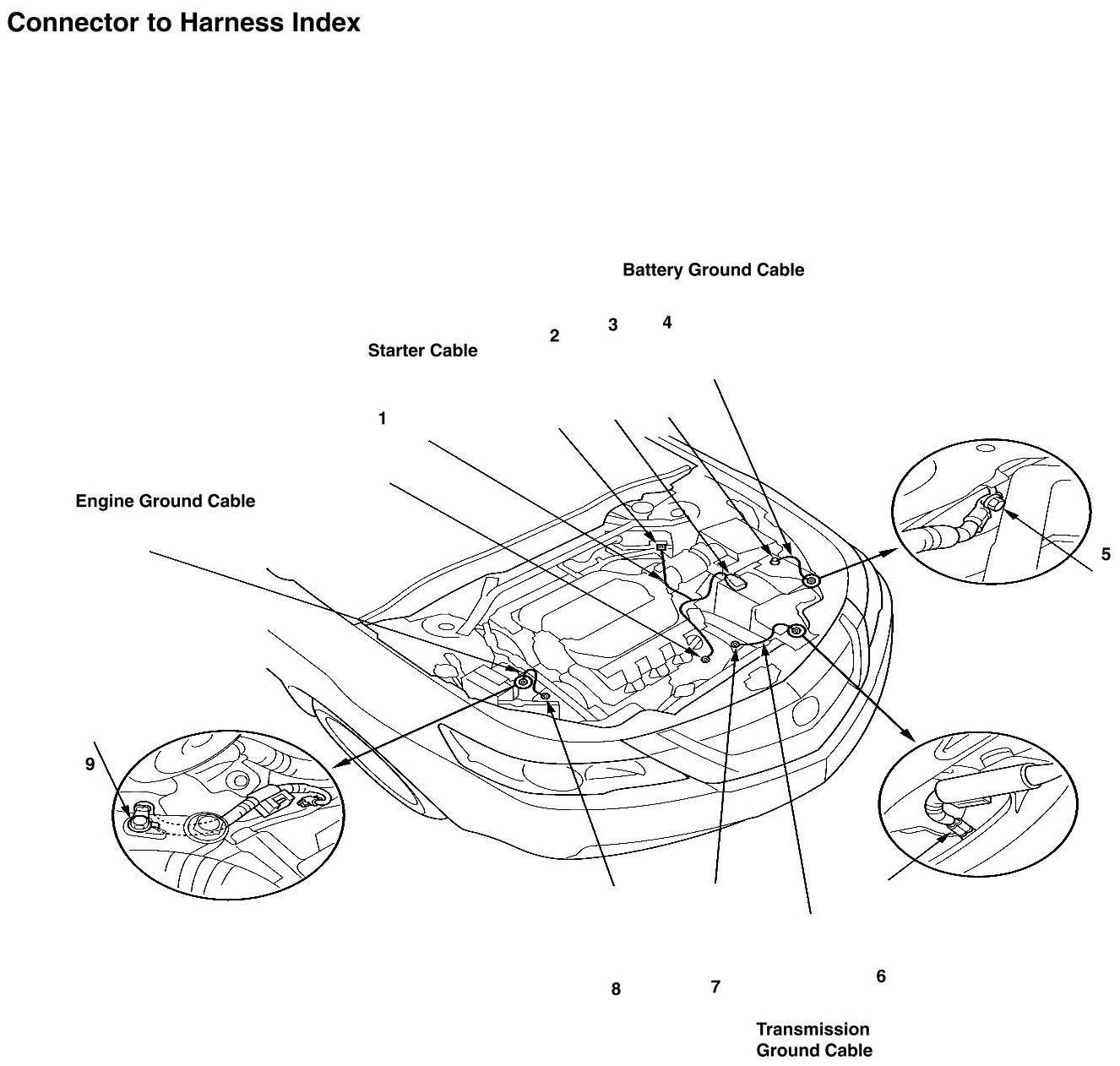

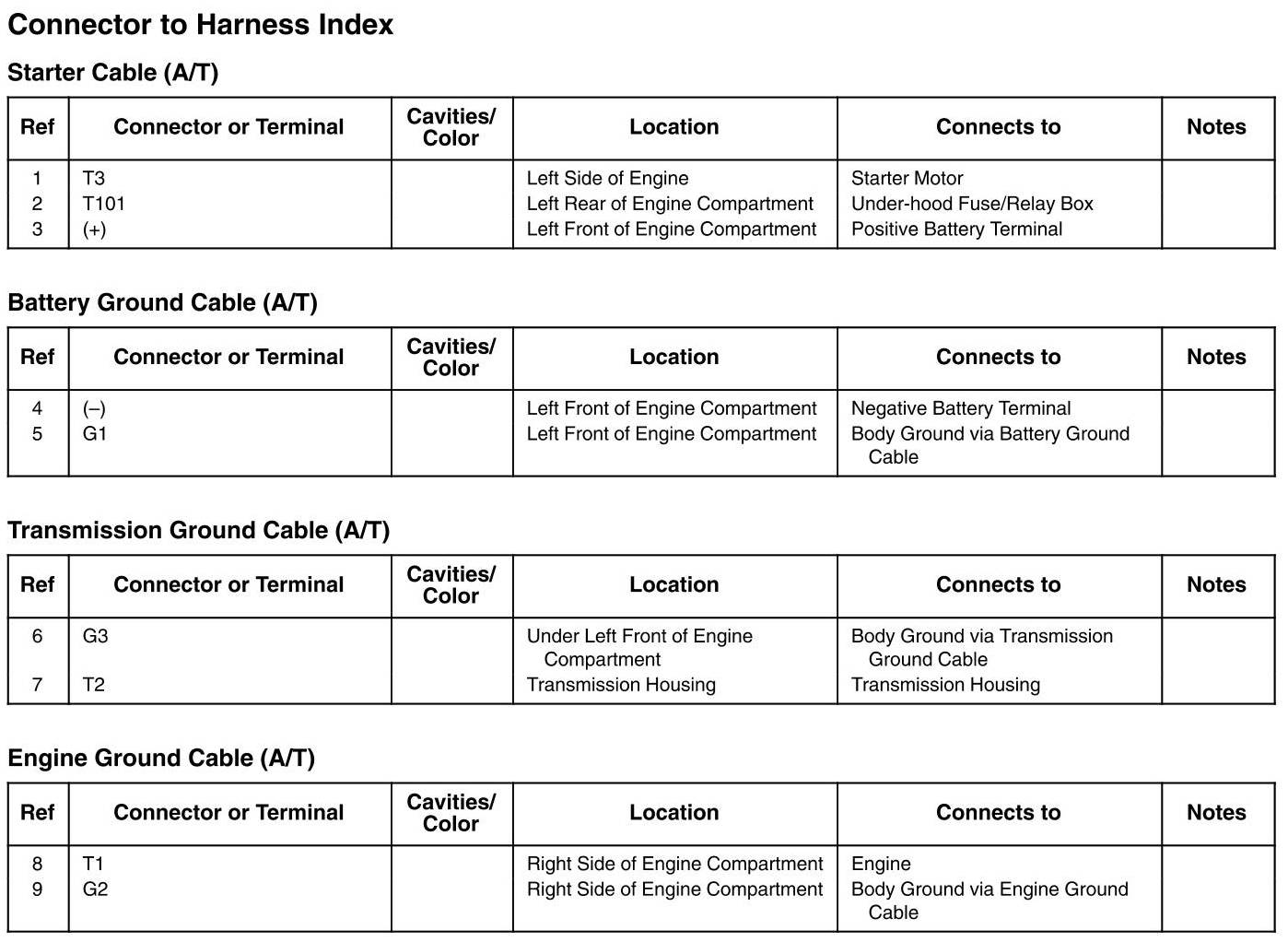

Connector to Harnesses (A/T)
