Engine Wire Harness (Engine Section) And Knock Sensor Subharness Connector And Harness Locations




Connector and Harness Locations

Engine Wire Harness (Engine Section) Knock Sensor Subharness (A/T)

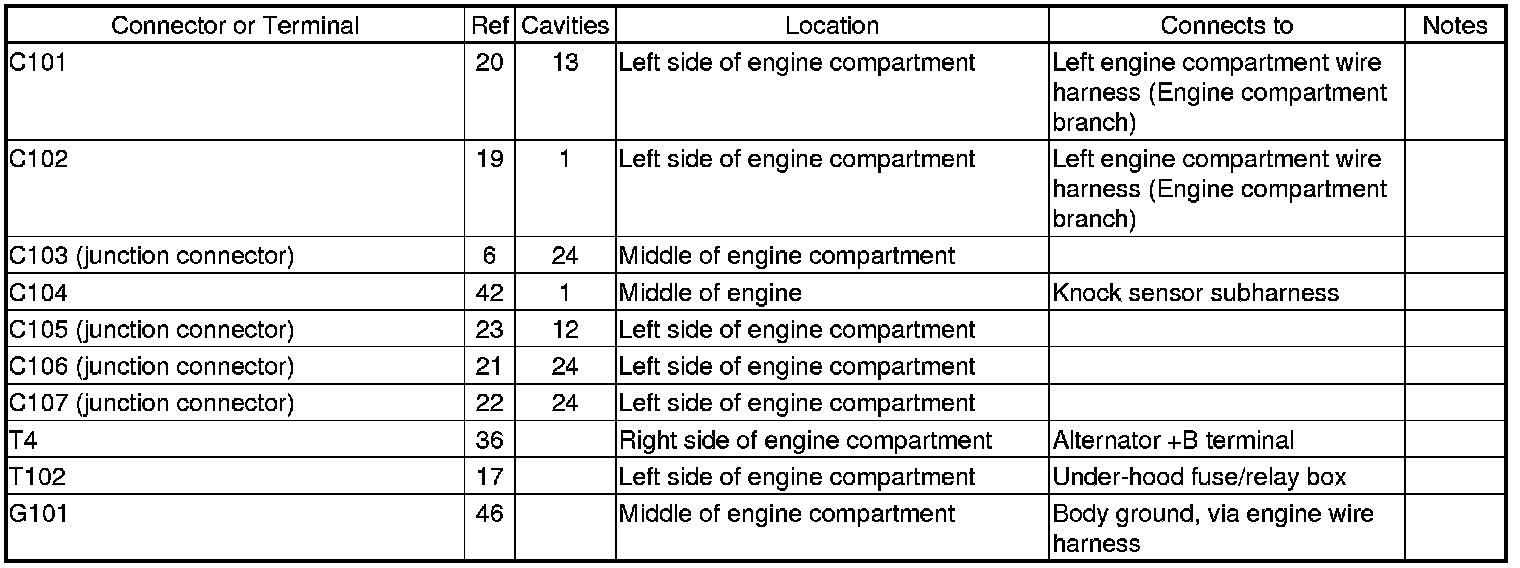

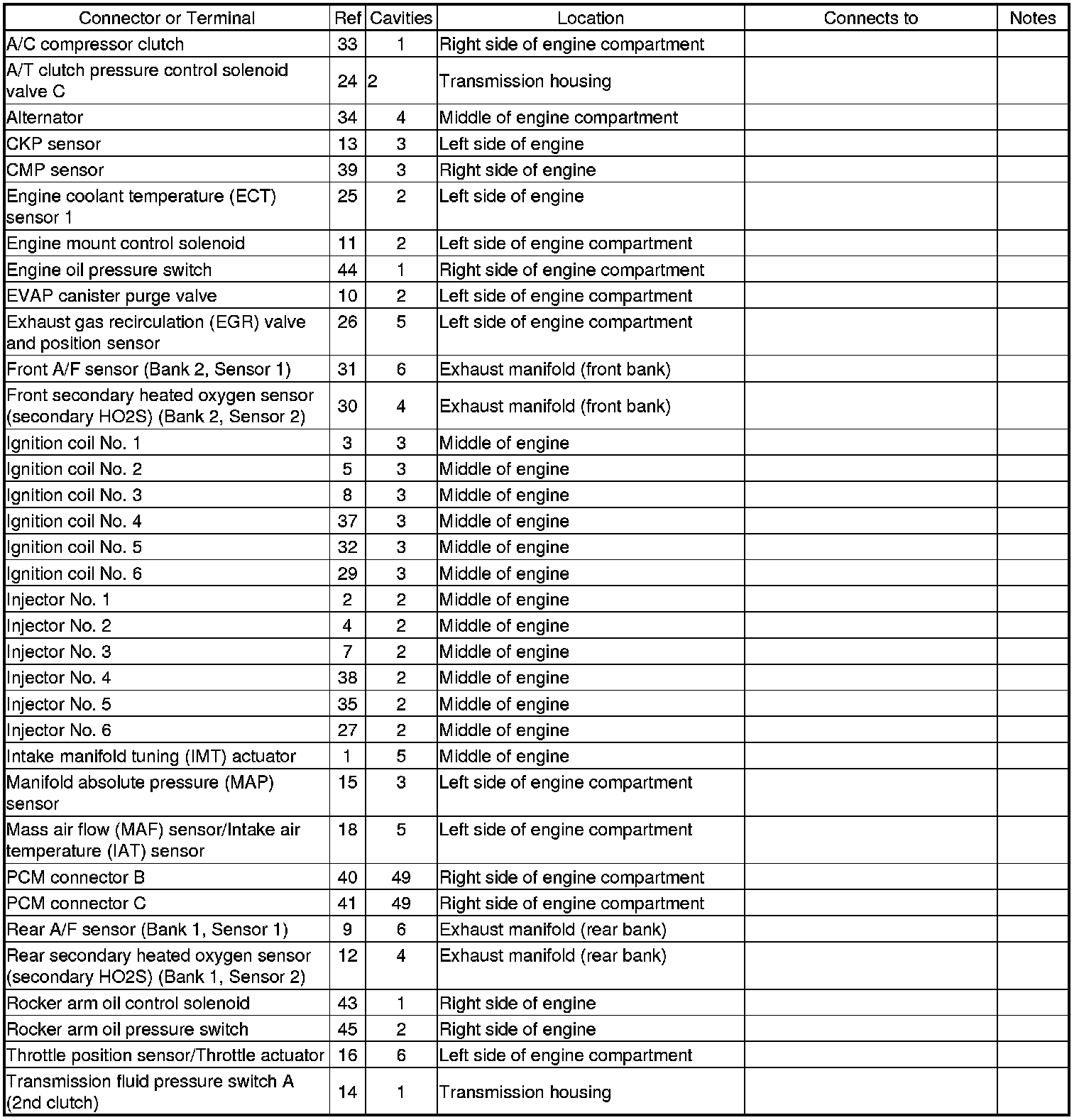

Engine Wire Harness (Engine Section) (A/T)










Knock Sensor Subharness (A/T)

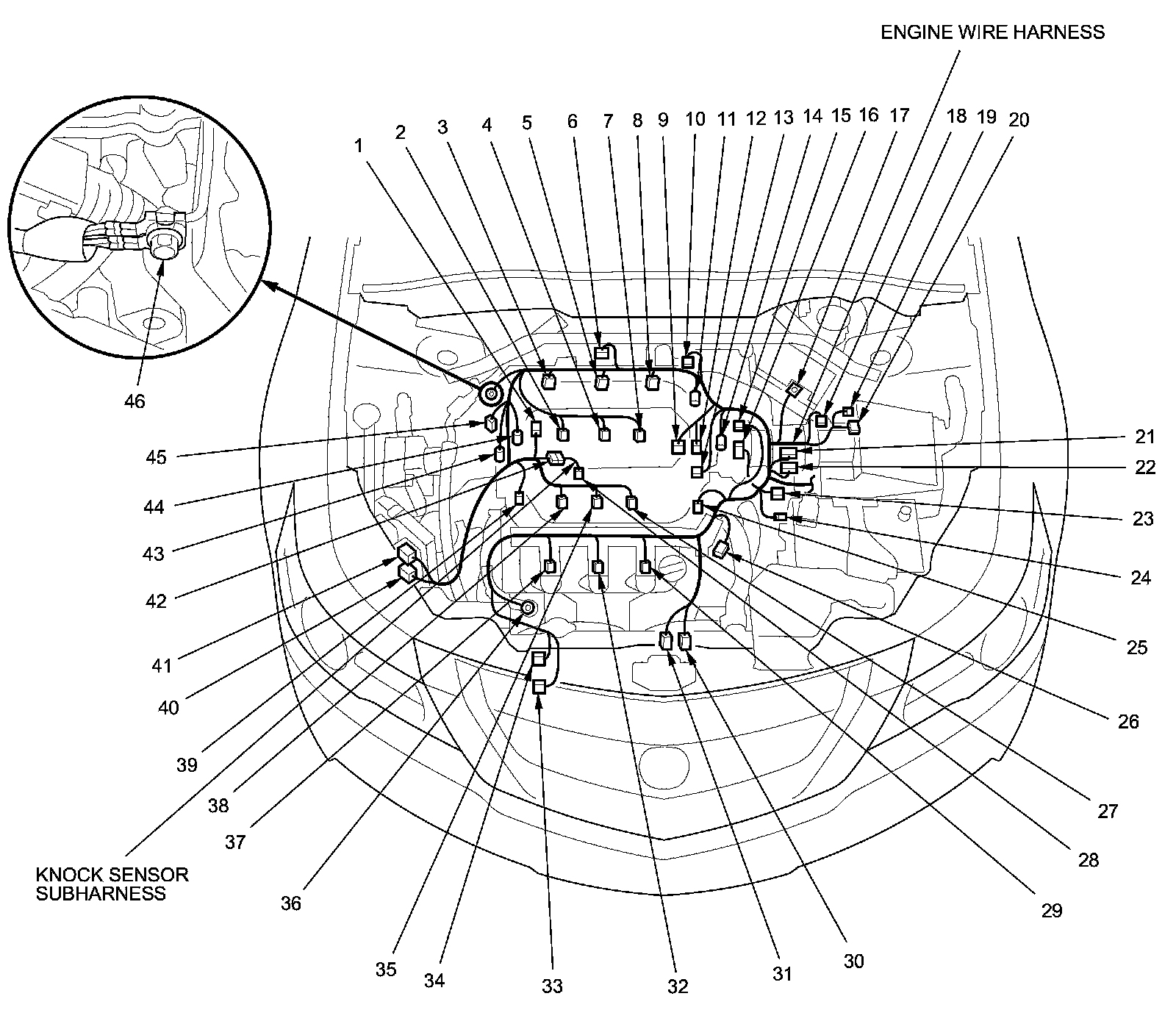

Harness View
