Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Locations >> Harness Locations >> Driver's Seat Wire Harness Connector And Harness Locations >> Connector or Terminal

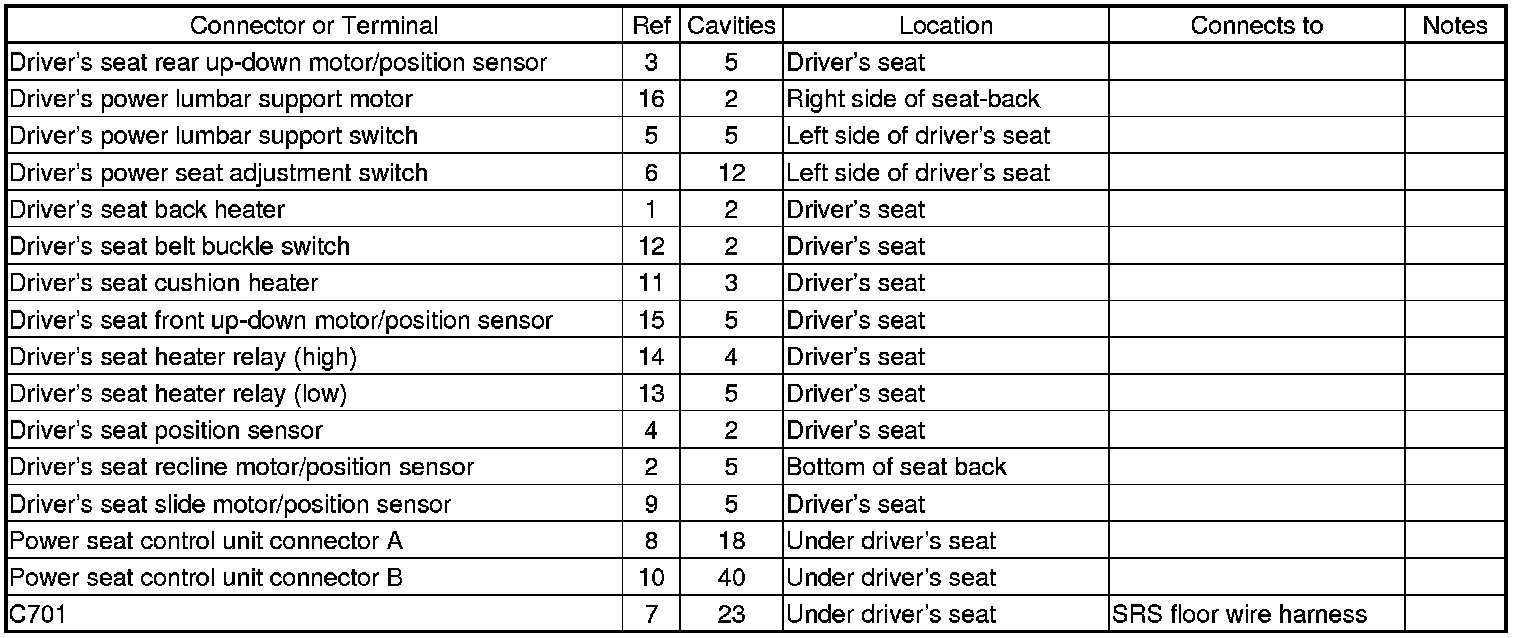

Connector or Terminal

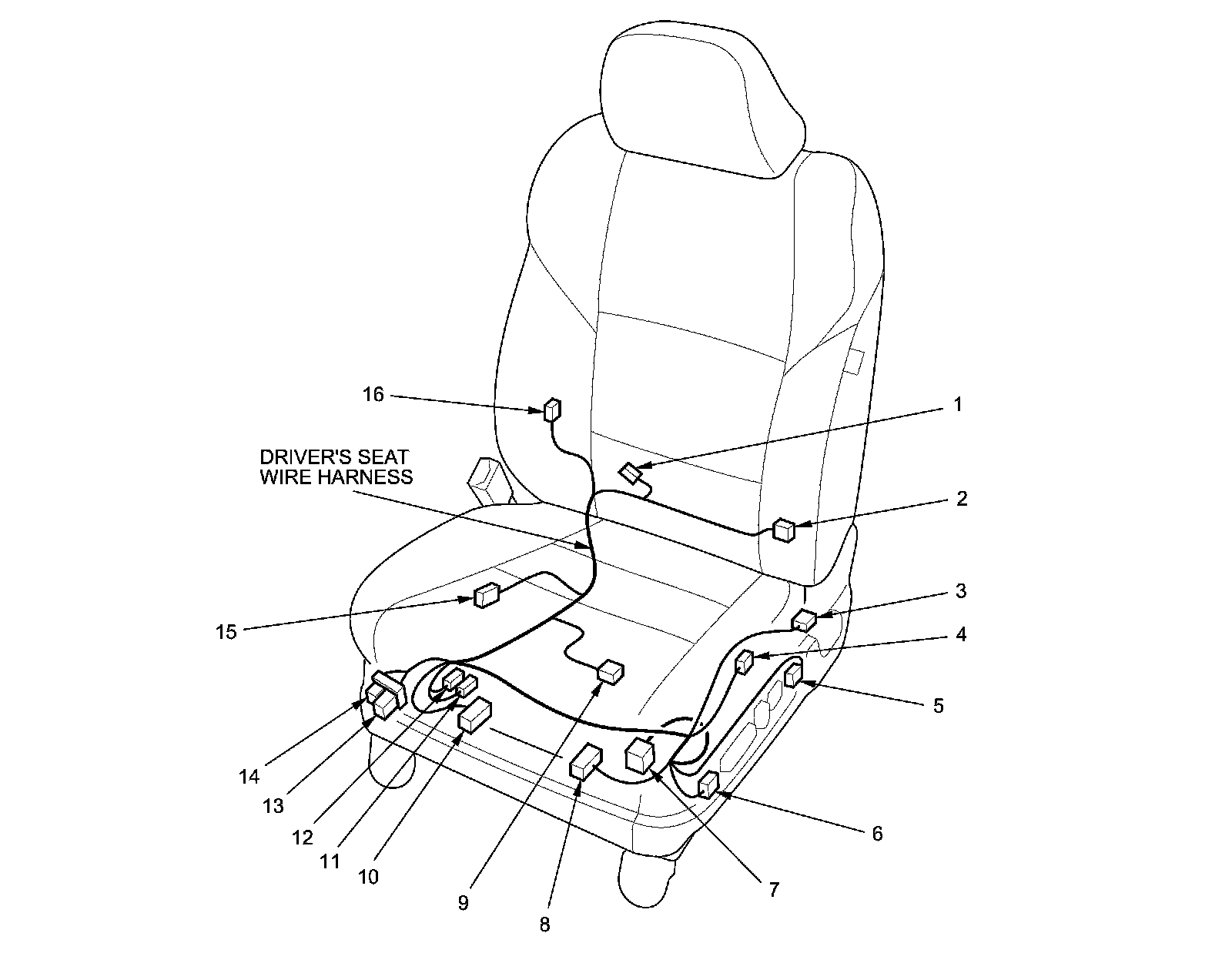

Connector and Harness Locations

Driver's Seat Wire Harness
