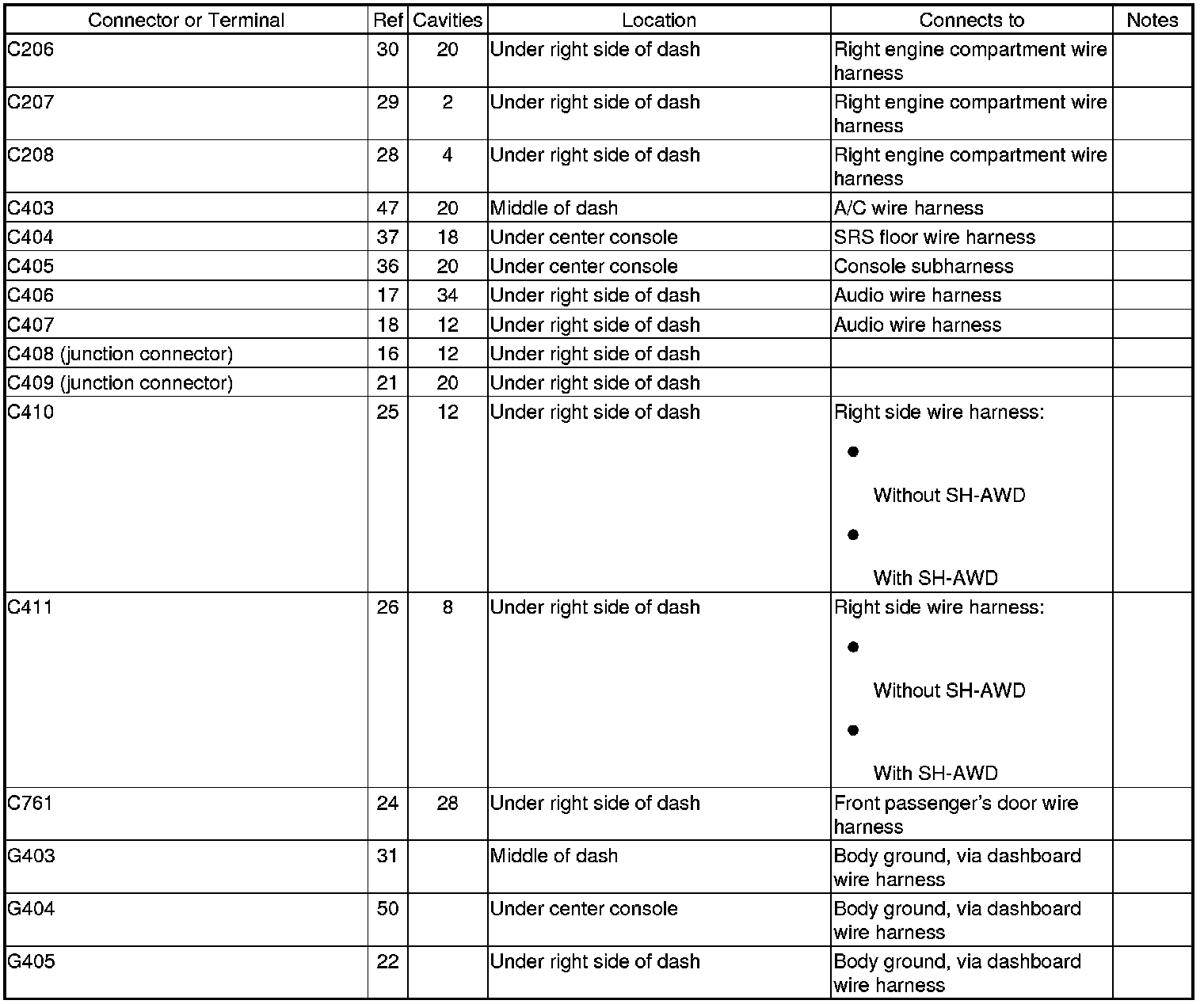

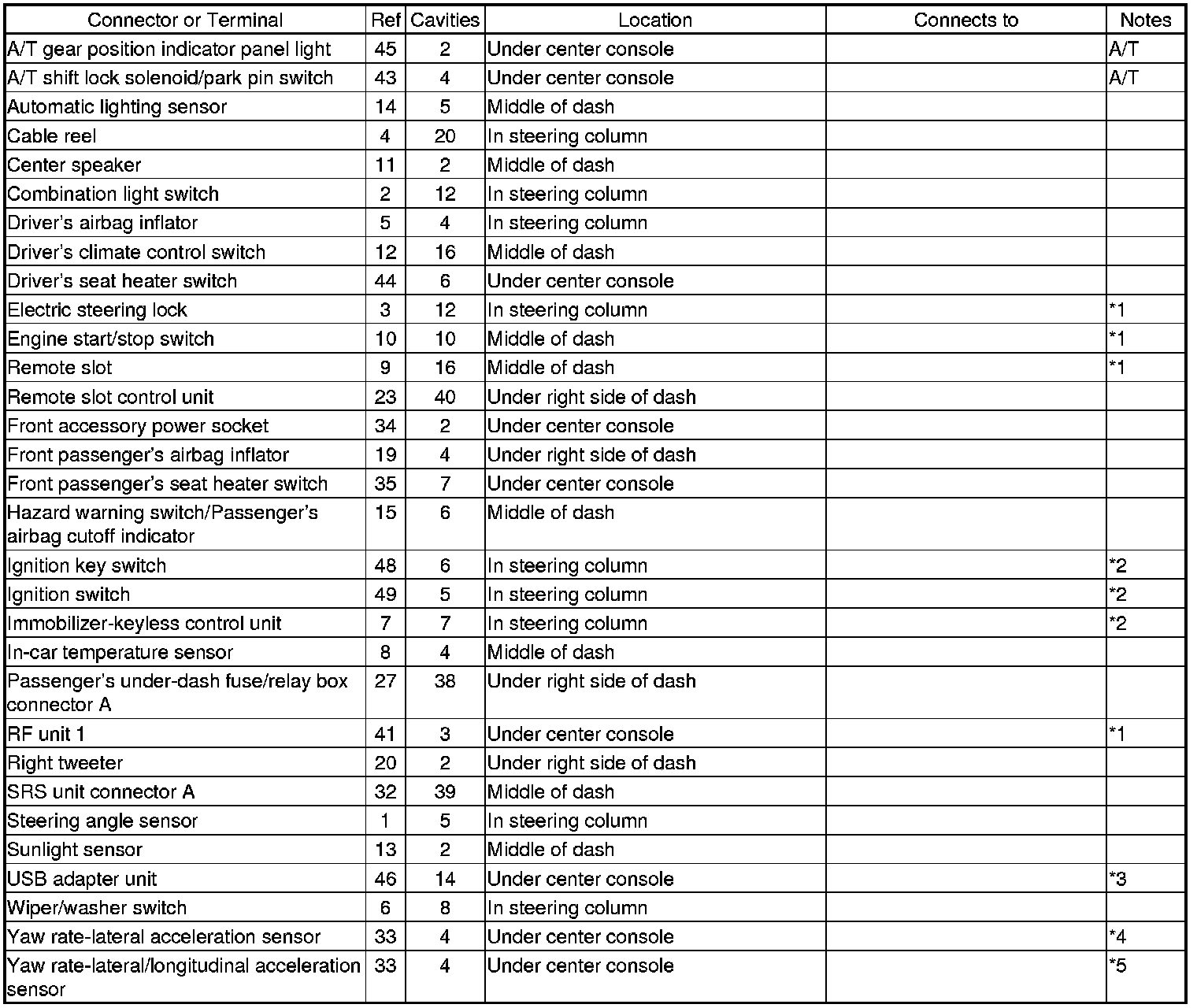

Connector or Terminal




Connector and Harness Locations

Dashboard Wire Harness (View of Middle to Passenger's Side) and Console Subharness

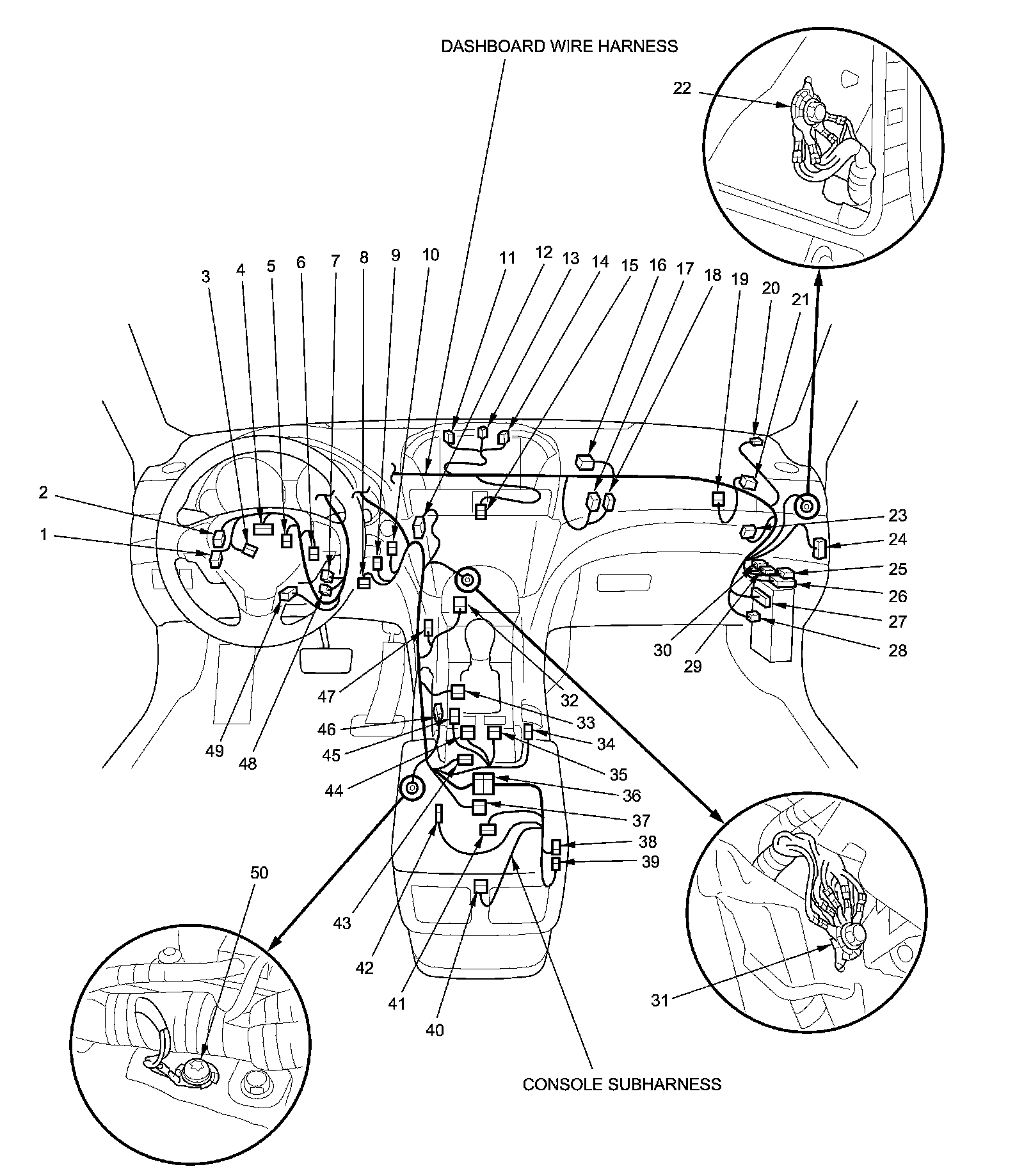

Harness View
