Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Locations >> Harness Locations >> A/C Wire Harness Connector And Harness Locations

A/C Wire Harness Connector And Harness Locations

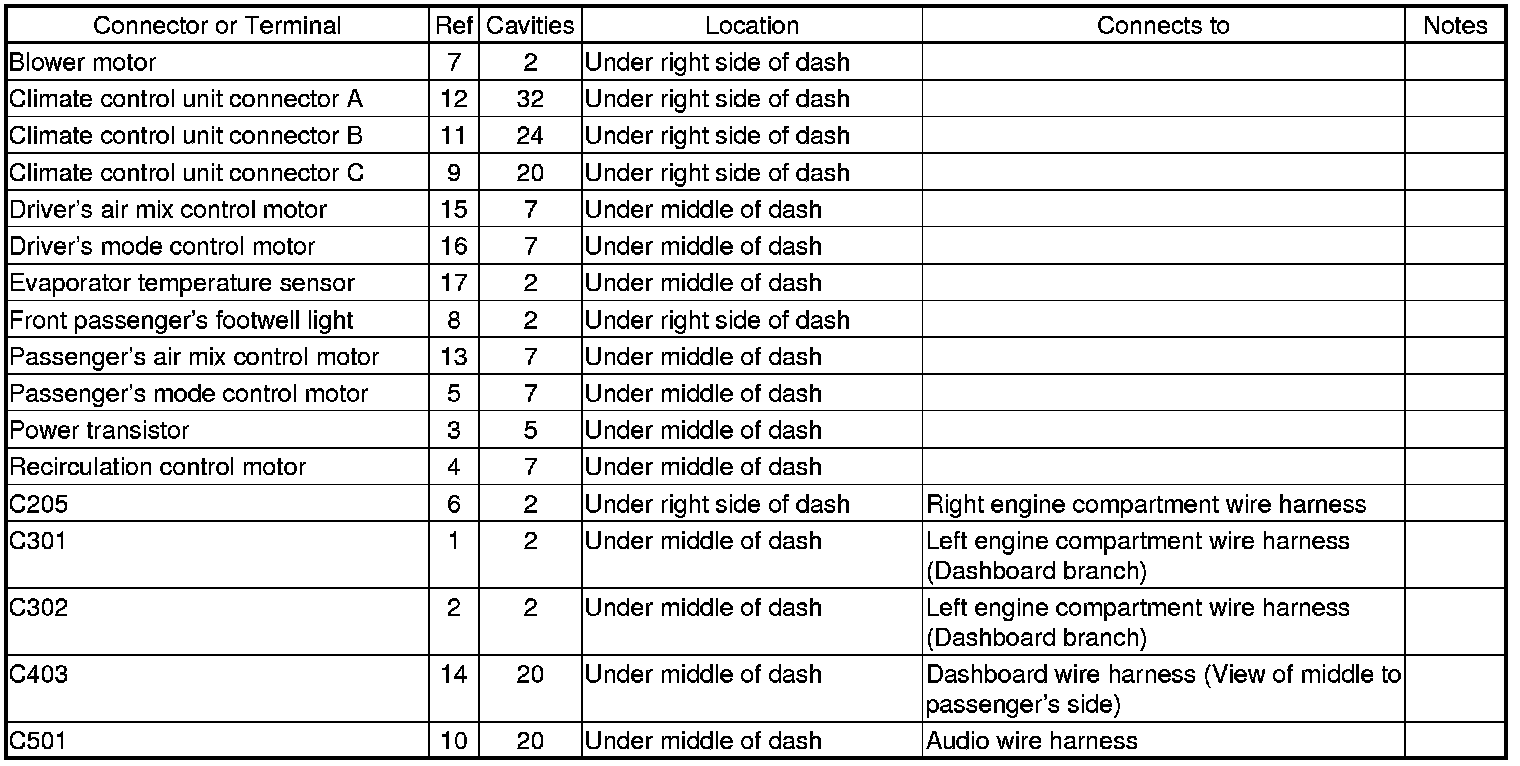

Connector and Harness Locations

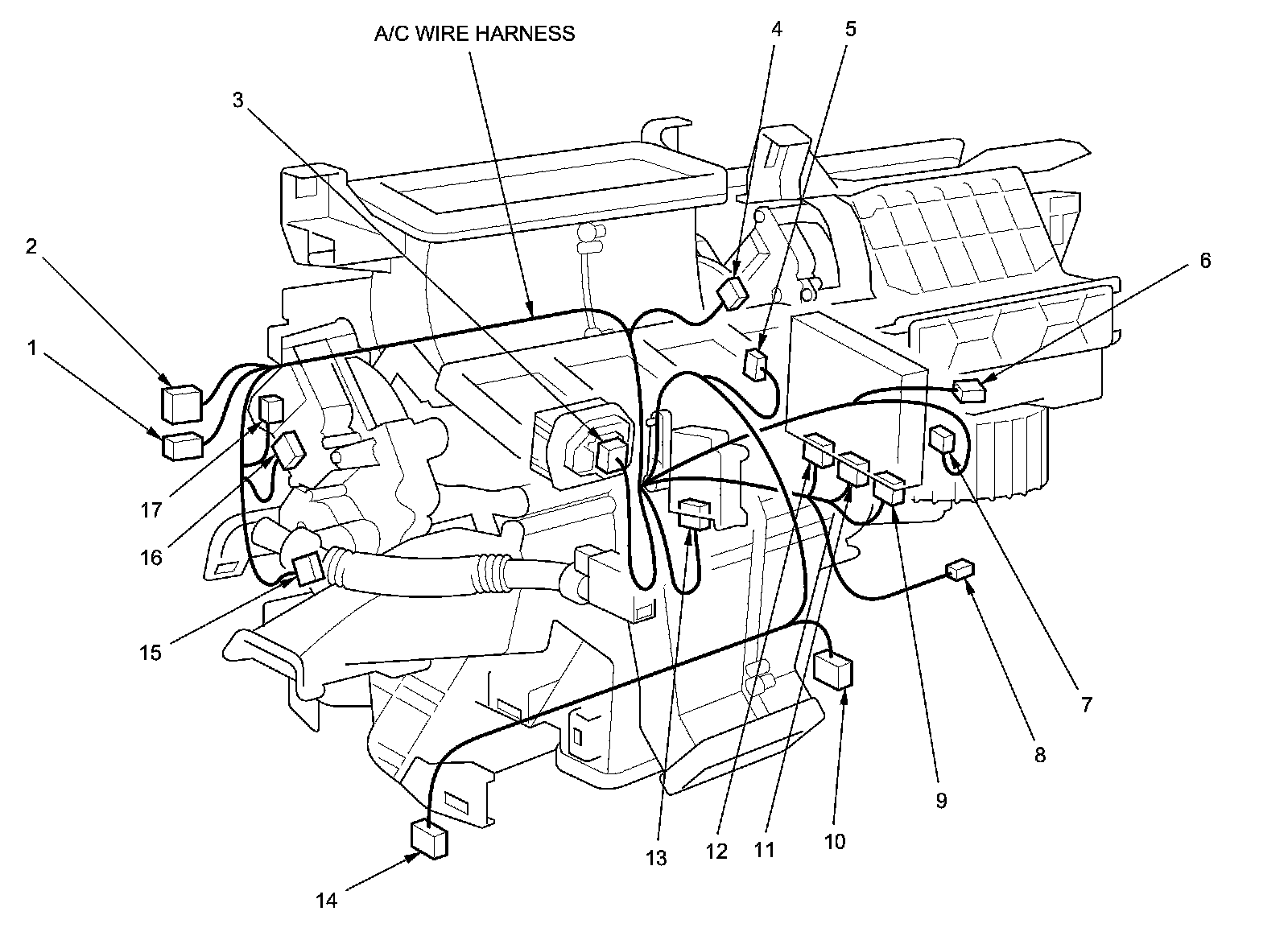

A/C Wire Harness
