Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor Replacement

1. Remove the driver's dashboard undercover Passenger's Dashboard Undercover Removal/Installation.

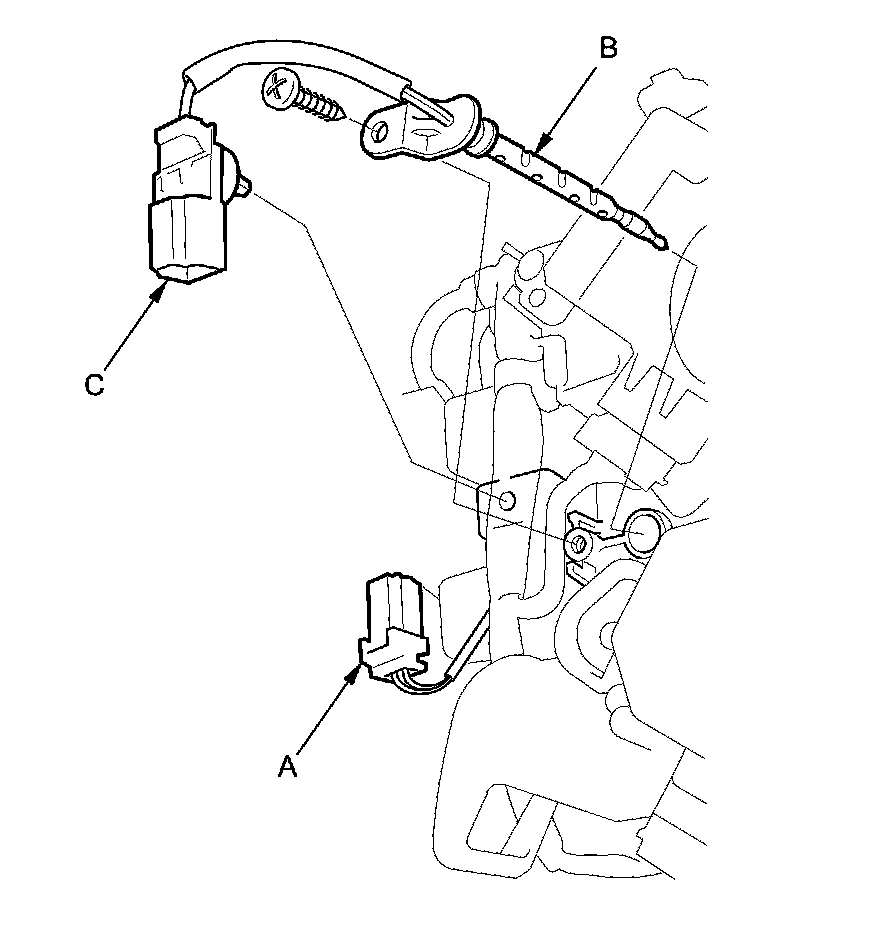

2. Disconnect the 2P connector (A) from the evaporator temperature sensor (B) by pressing the lock tab toward the evaporator housing, then slide the male coupler down, and remove the connector clip (C). Remove the self-tapping screw and the evaporator temperature sensor.





3. Install the sensor in the reverse order of removal.
