Oil Pressure Sender: Testing and Inspection

Engine Oil Pressure Switch Test

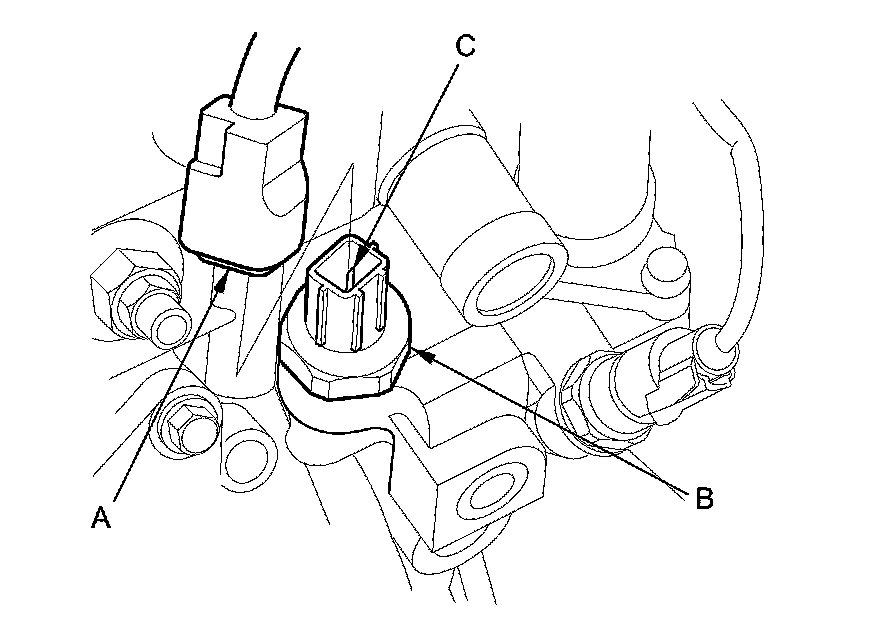

1. Disconnect the connector (A) from the oil pressure switch (B).





2. Check for continuity between the positive terminal (C) and the engine (ground). There should be no continuity with the engine stopped. There should be continuity with the engine running.
