Side Engine Mount Removal/Installation

Side Engine Mount Removal and Installation

Removal

1. Remove the engine compartment covers Service and Repair.

2. Lift and support the engine with a jack and a wood block under the oil pan.

3. Remove the ground cable (A), then remove the upper half of the side engine mount bracket (B).

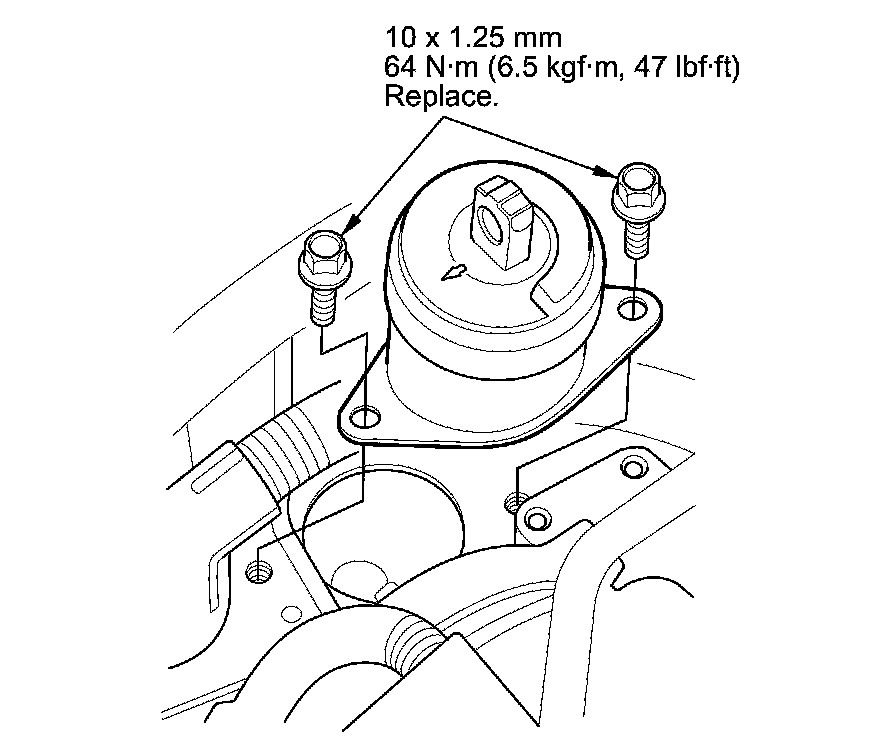

4. Remove the side engine mount.






Installation

1. Install the side engine mount.

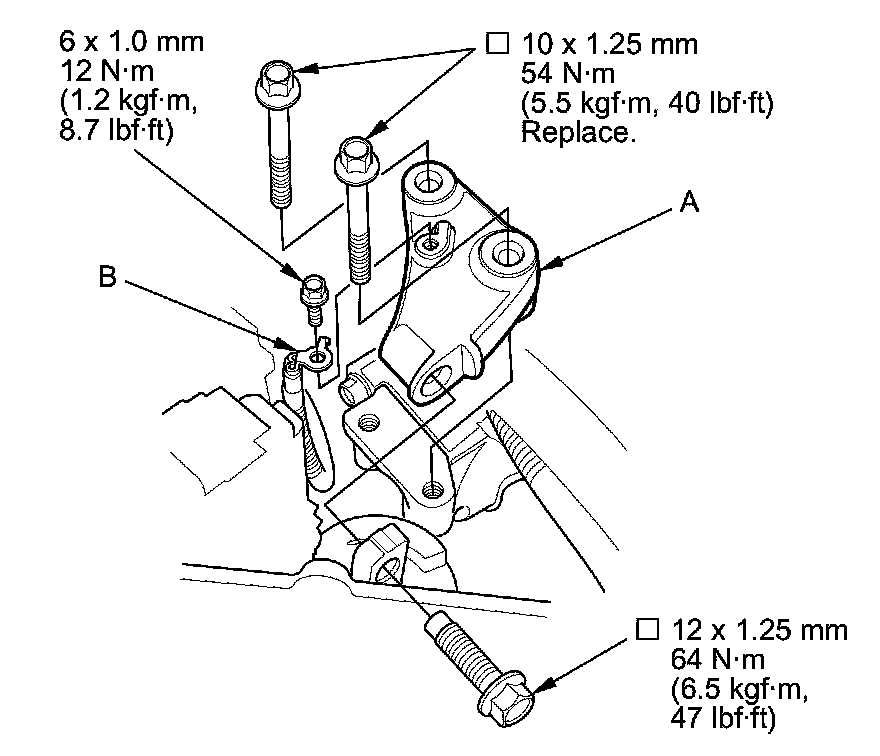

2. Loosely install the upper half of the side engine mount bracket (A).





3. Remove the jack and the wood block.

4. Tighten the bolts in the numbered sequence shown.

5. Install the ground cable (B).

6. Install the engine compartment covers Service and Repair.
