Cylinder Head Sealing Bolt Installation




Cylinder Head Sealing Bolt Installation

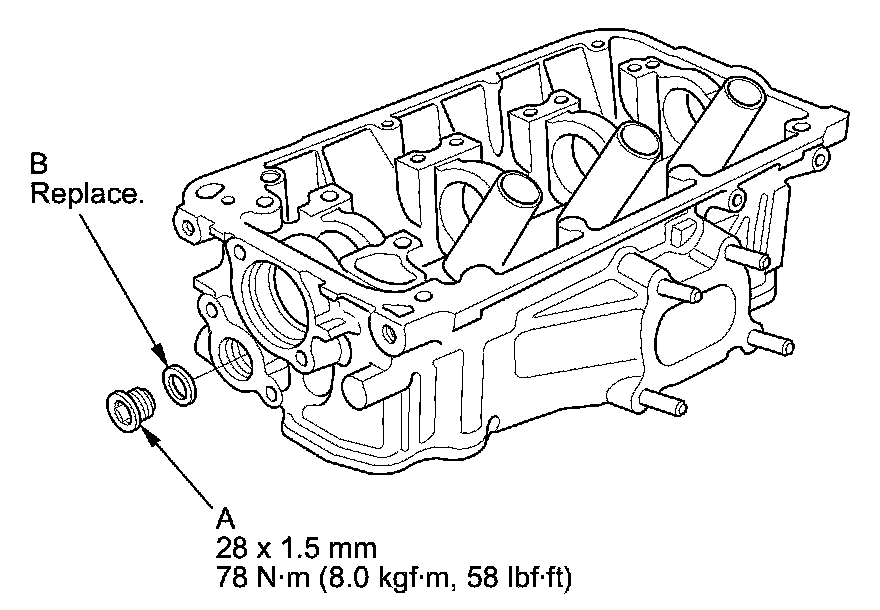

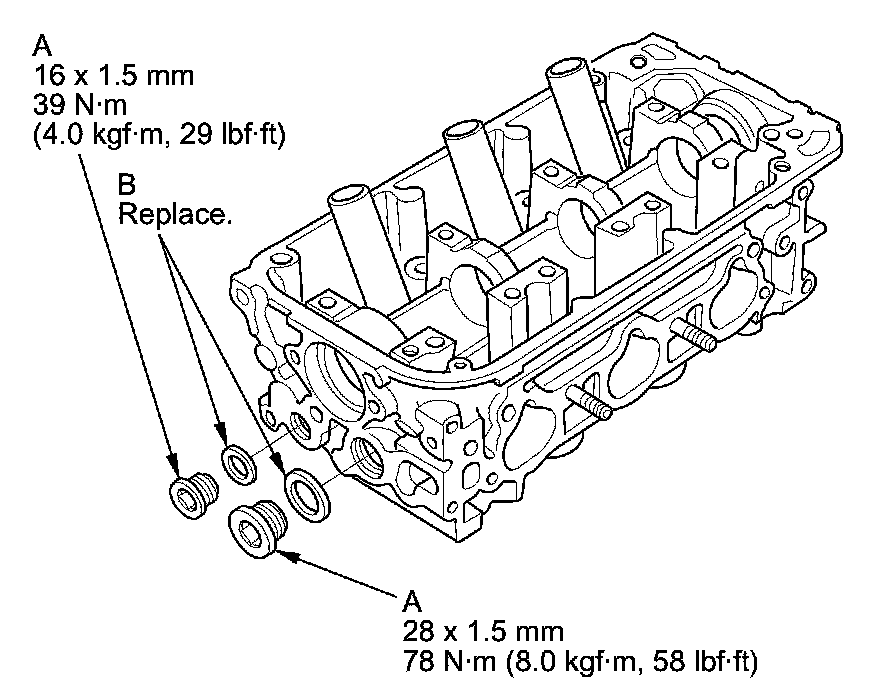

NOTE: When installing the sealing bolts (A), always use a new washer (B).
