Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Harness >> Dashboard Wire Harness (View Of Driver's Side) Connector And Harness Locations >> Connector or Terminal

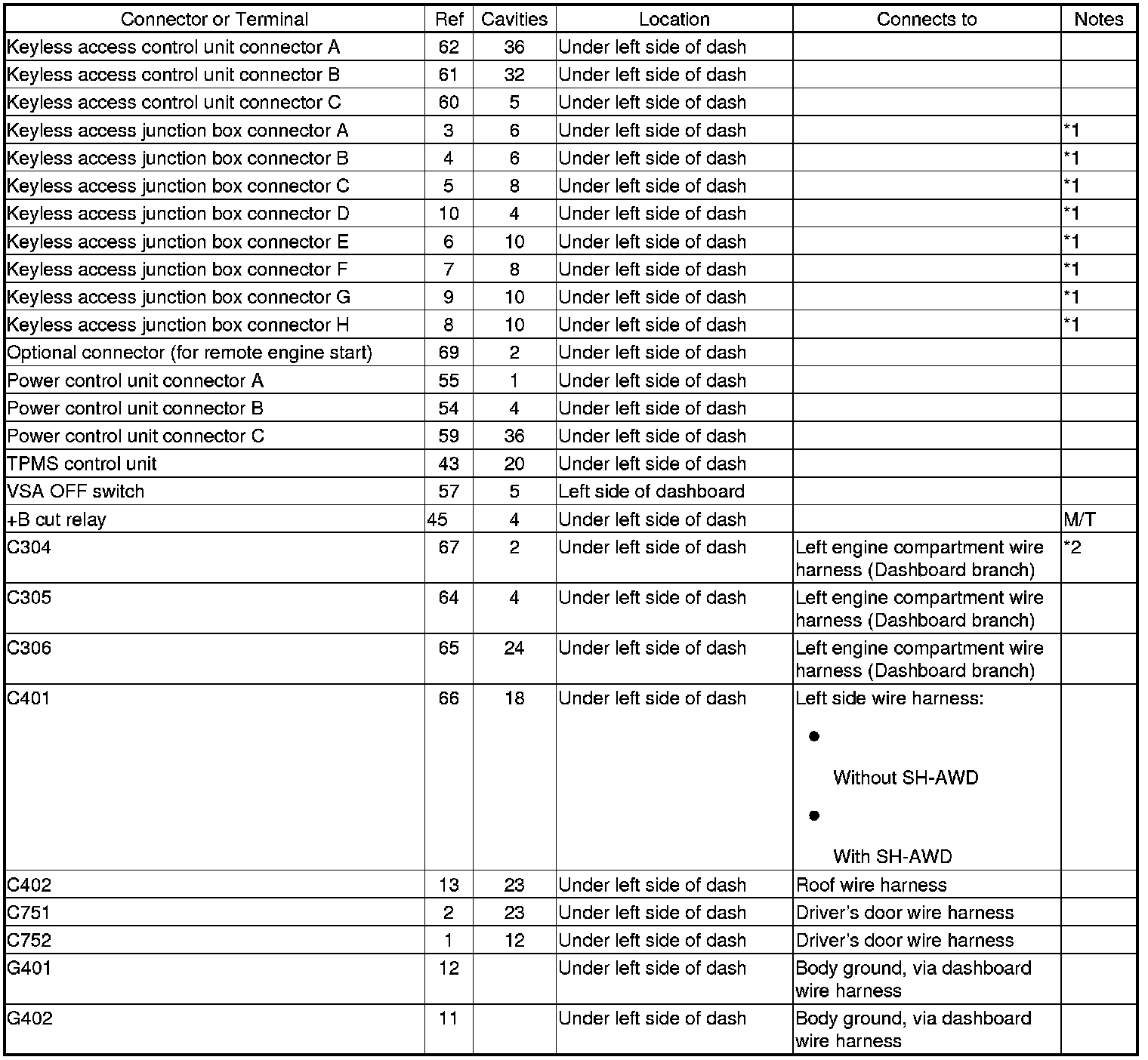

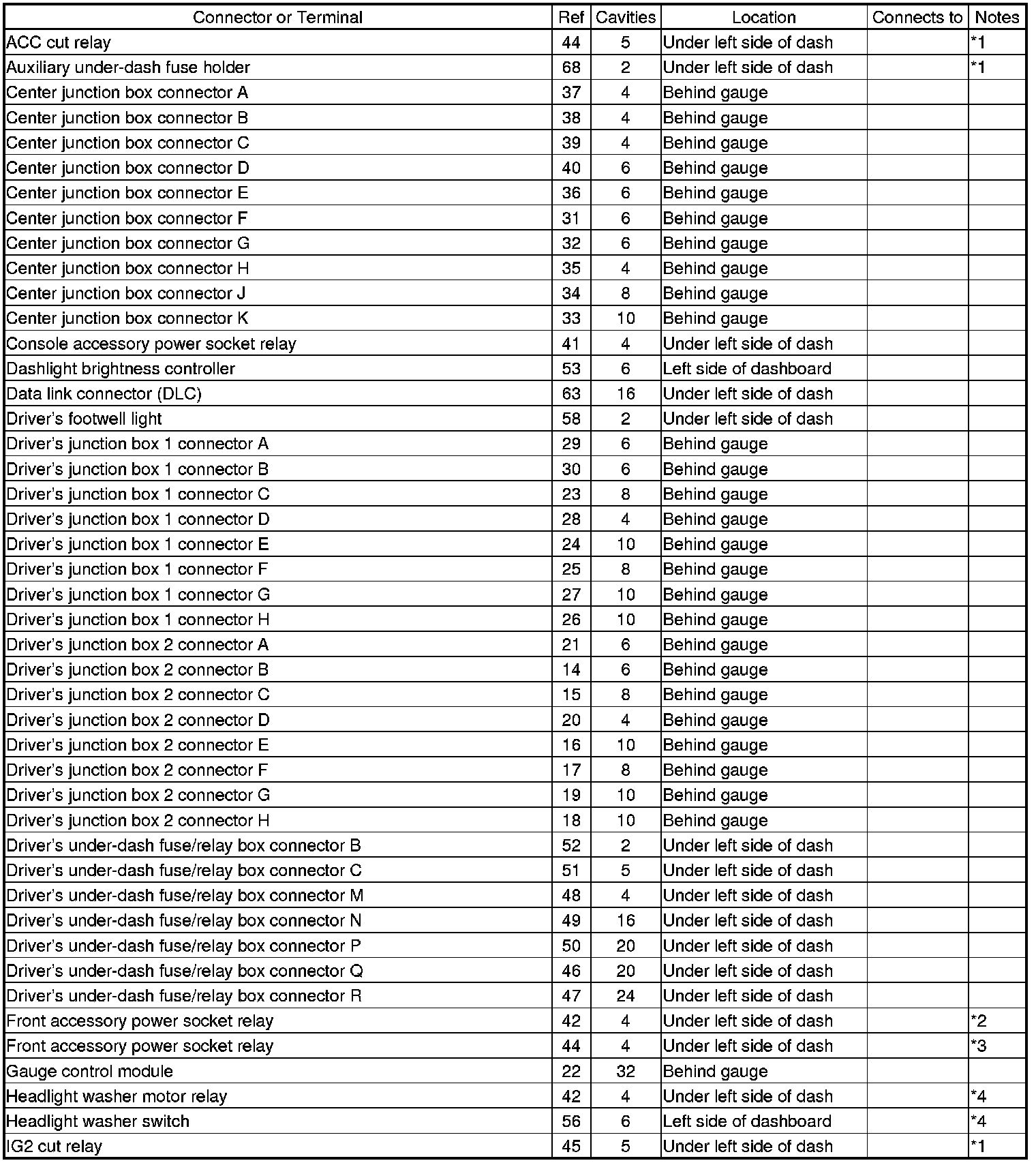

Connector or Terminal




Connector and Harness Locations

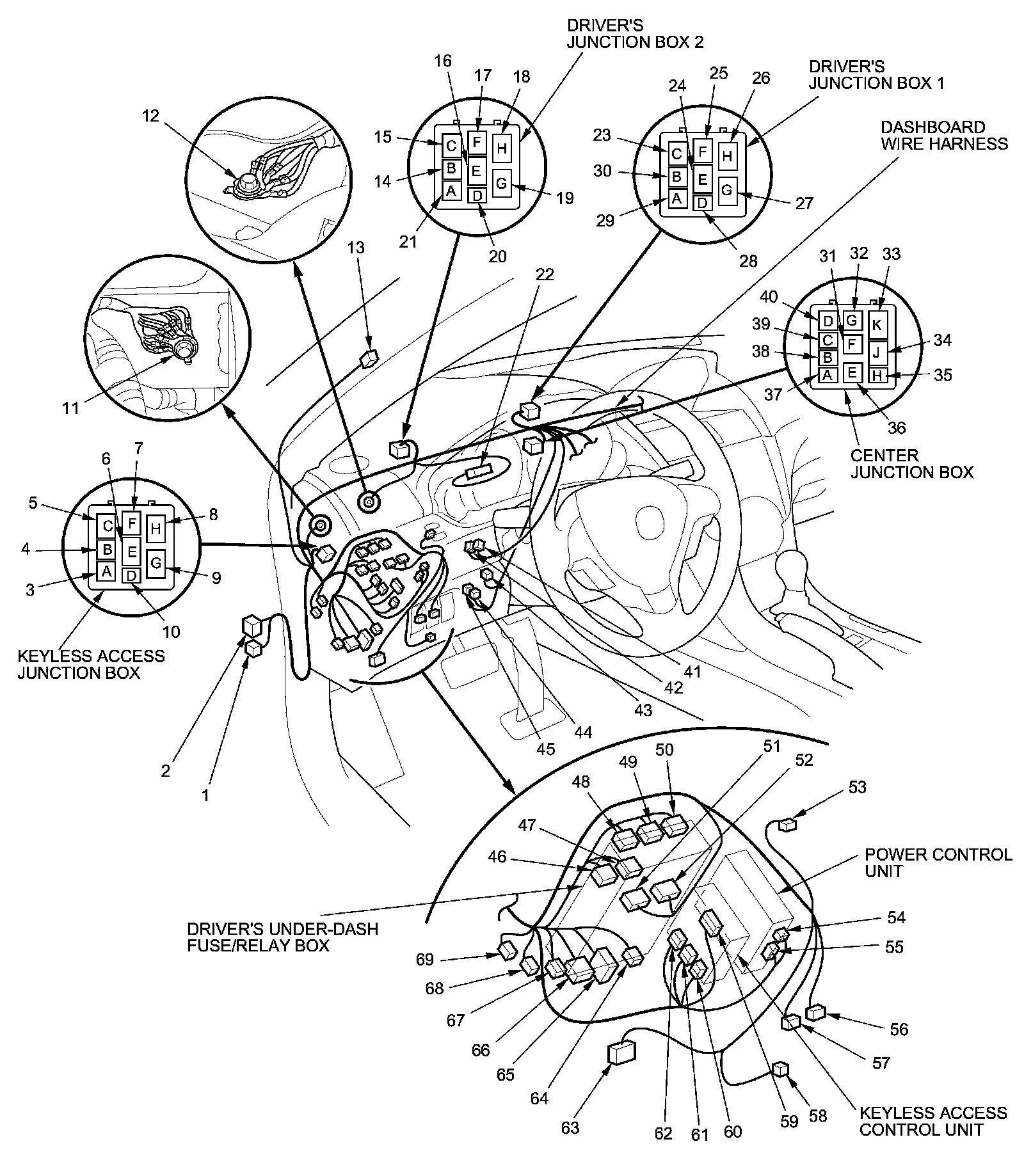

Dashboard Wire Harness (View of driver's side)
