Home
>>
Acura
>>
2010
>>
TL FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>

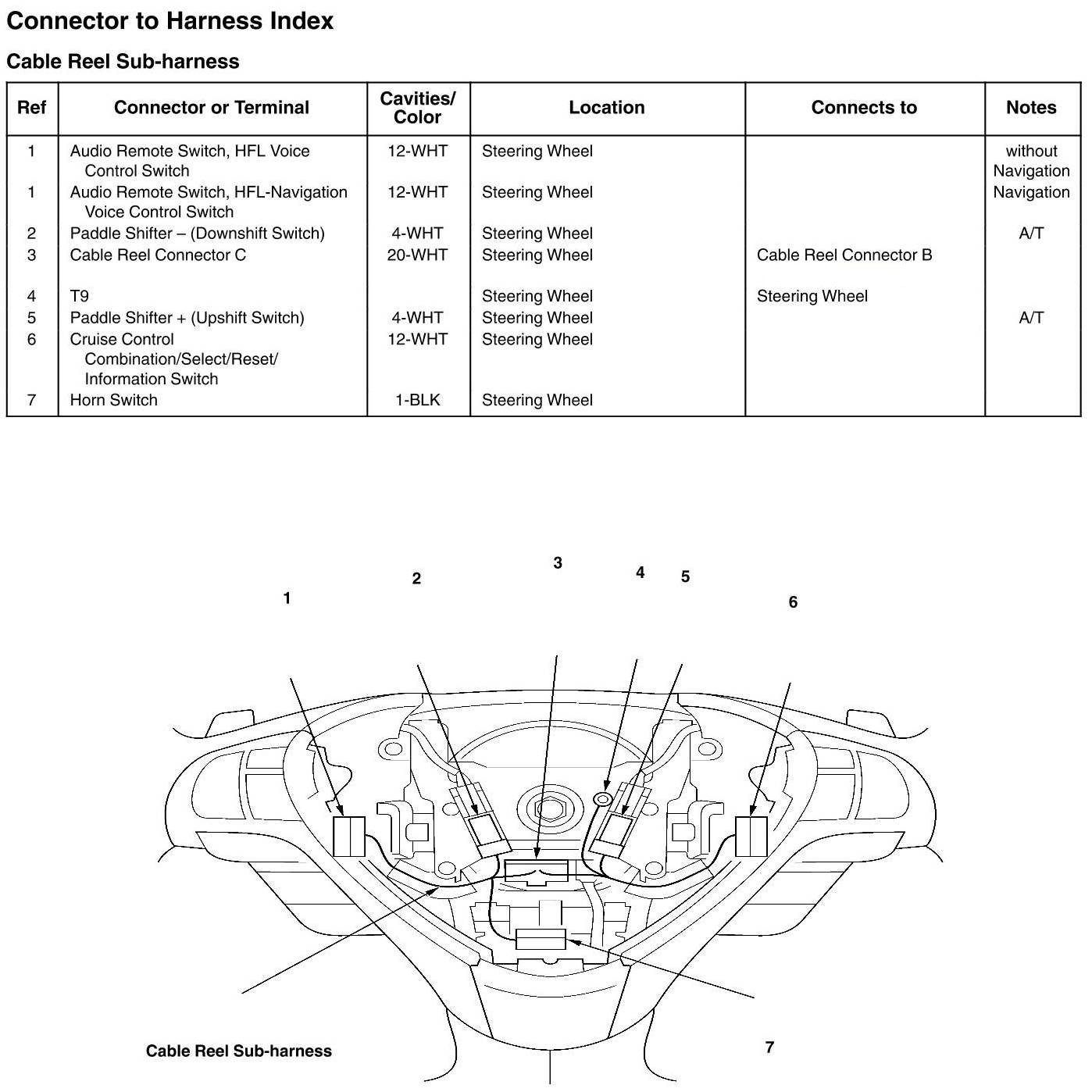

Cable Reel Subharness
>>
Connector to Harnesses
Connector to Harnesses
