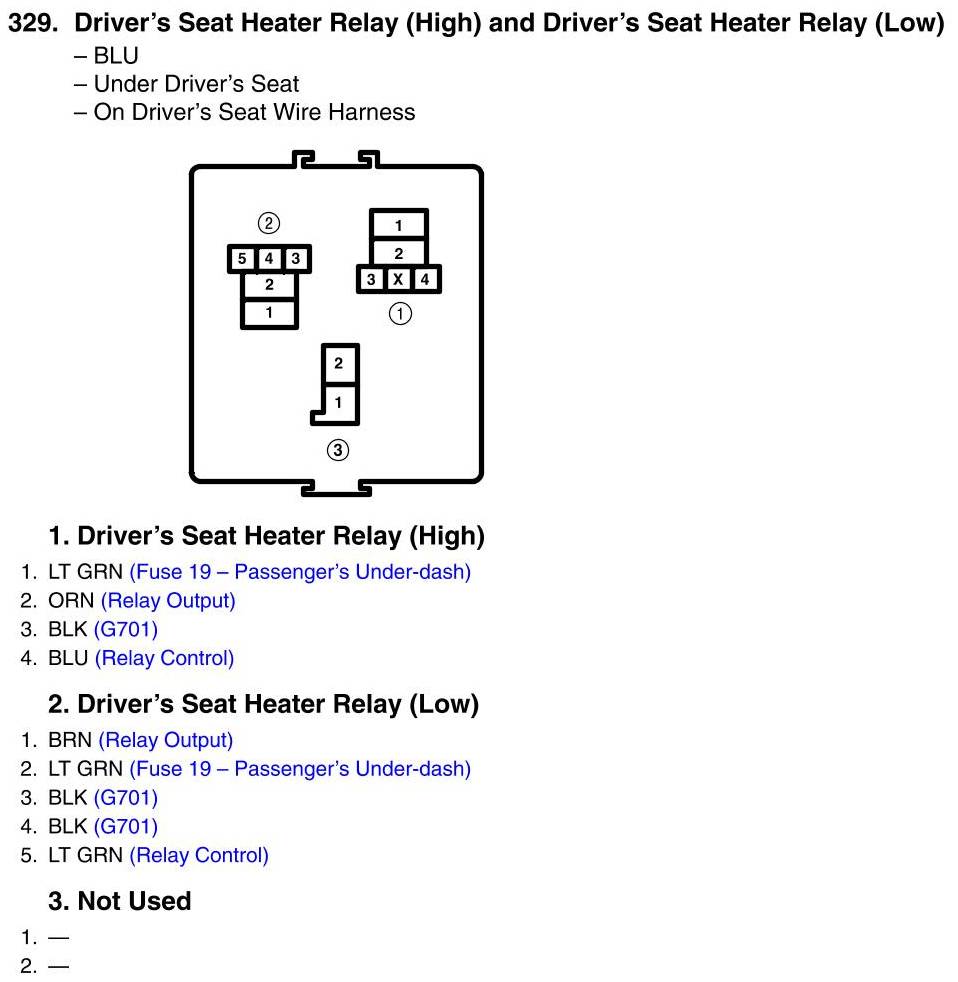

Driver's Seat Heater Relay (High) And Driver's Seat Heater Relay (Low) Connector View
Driver's Seat Heater Relay (High) And Driver's Seat Heater Relay (Low) Connector View
