Home
>>
Acura
>>
2010
>>
TL FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio, Stereo, and Compact Disc
>>
Remote Switch, Audio - Stereo
>>

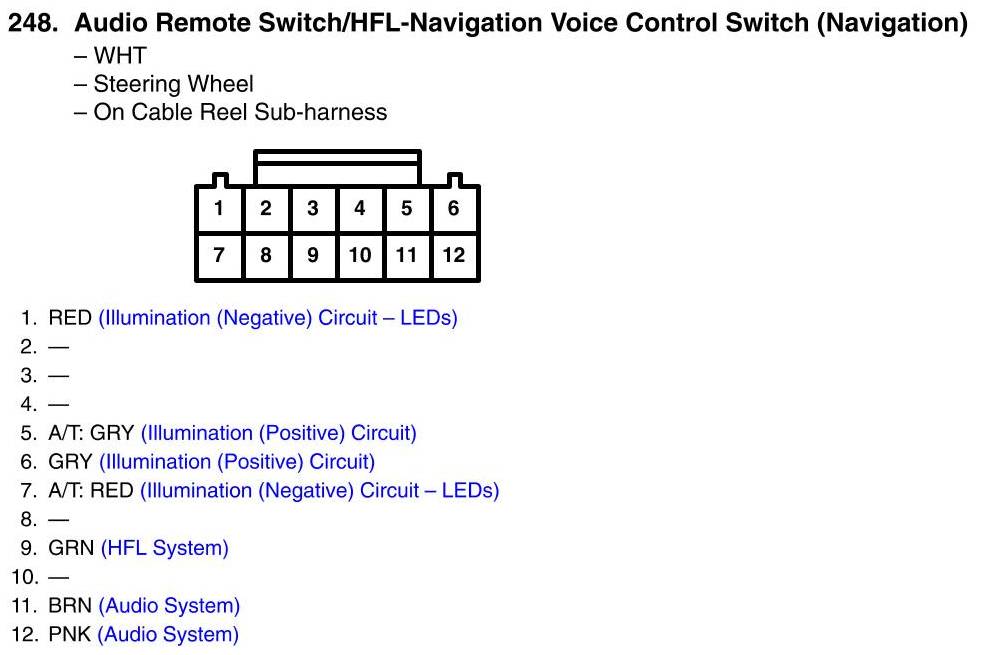

Audio Remote Switch/HFL-Navigation Voice Control Switch Connector View (Navigation)
Audio Remote Switch/HFL-Navigation Voice Control Switch Connector View (Navigation)
