Power Trunk / Liftgate Lock Switch
>>

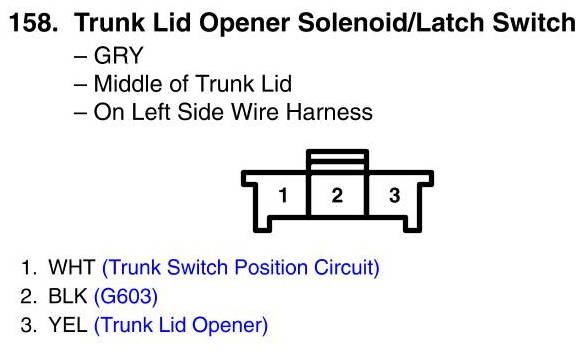

Trunk Lid Opener Solenoid/Latch Switch Connector View
Trunk Lid Opener Solenoid/Latch Switch Connector View
