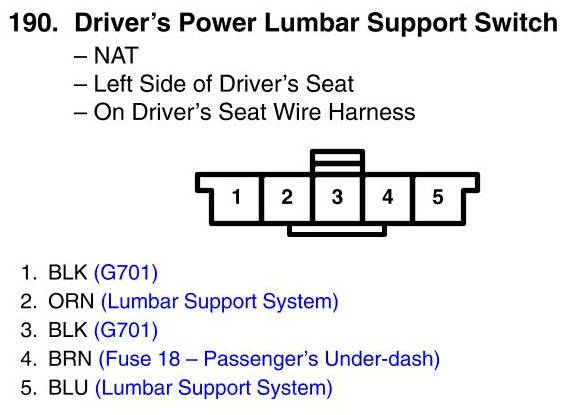

Driver's Power Lumbar Support Switch Connector View
Driver's Power Lumbar Support Switch Connector View
