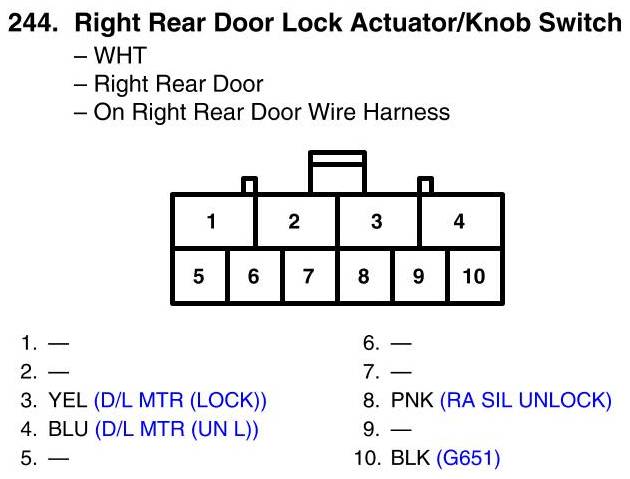

Right Rear Door Lock Actuator/Knob Switch Connector View
Right Rear Door Lock Actuator/Knob Switch Connector View
