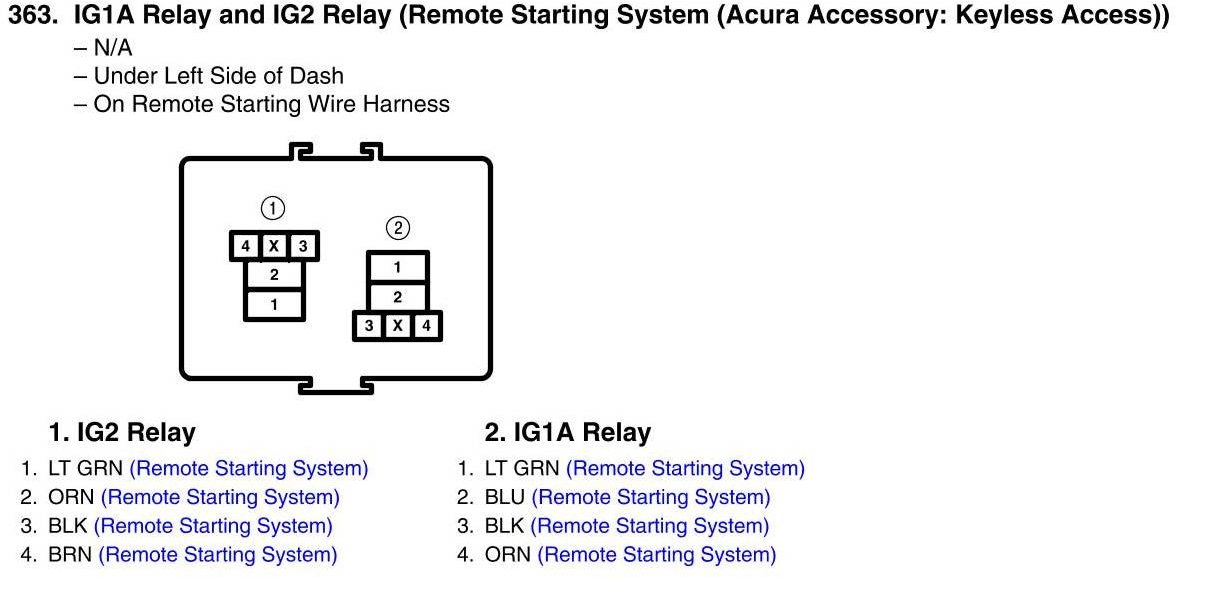

IG1A Relay and IG2 Relay Connector View (Remote Starting System (Acura Accessory: Keyless Access))
IG1A Relay and IG2 Relay Connector View (Remote Starting System (Acura Accessory: Keyless Access))
