Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Auxiliary Under-Dash Fuse Holder Connector View (Without Keyless Access)

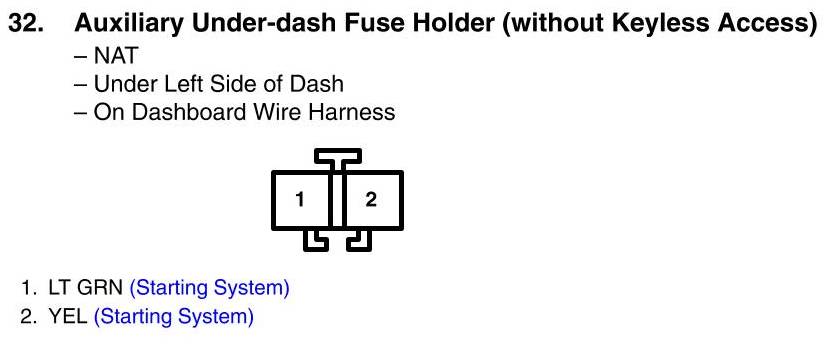

Auxiliary Under-Dash Fuse Holder Connector View (Without Keyless Access)
