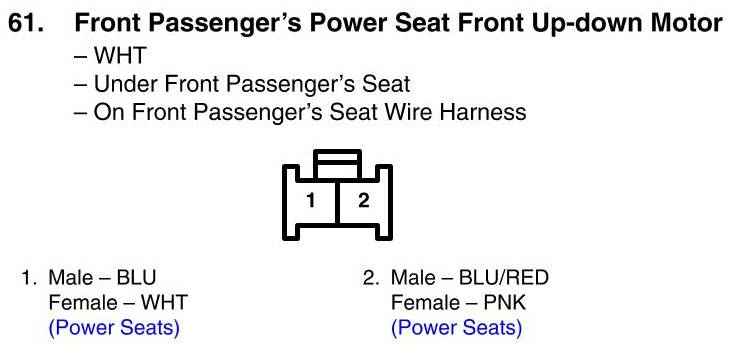

View 61 - Front Passenger's Power Seat Front Up-Down Motor Connector View
View 61 - Front Passenger's Power Seat Front Up-Down Motor Connector View
