Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 365 - Remote Starting Control Unit Connector View (Remote Starting System (Acura Accessory))

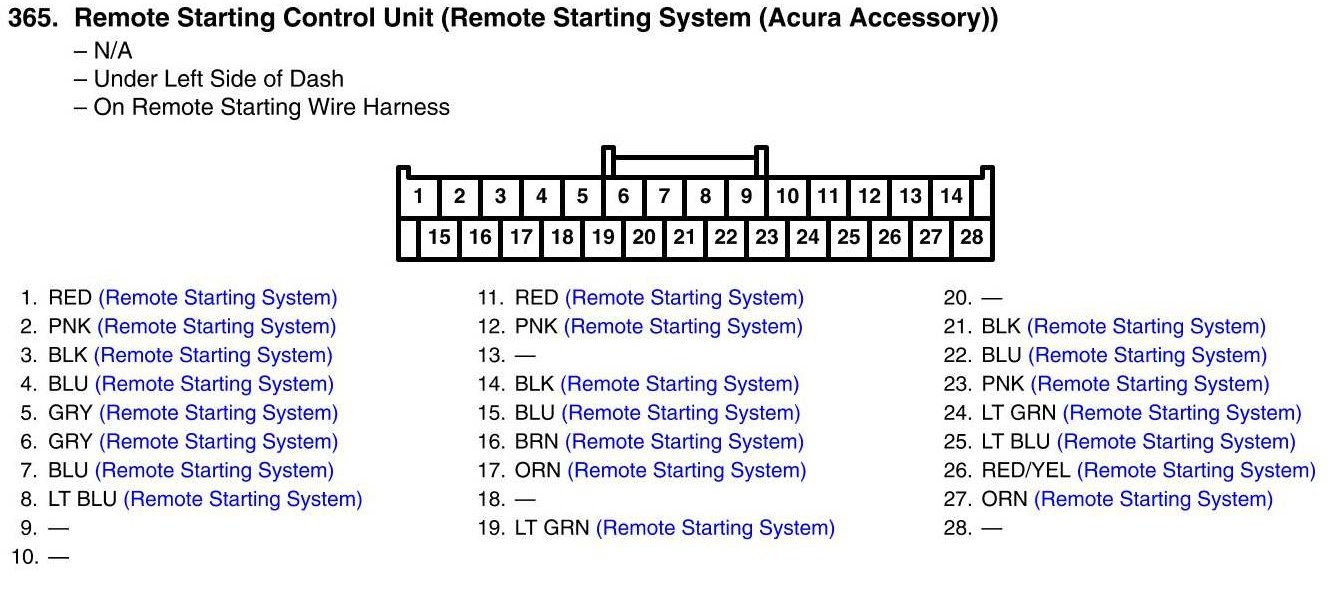

View 365 - Remote Starting Control Unit Connector View (Remote Starting System (Acura Accessory))
