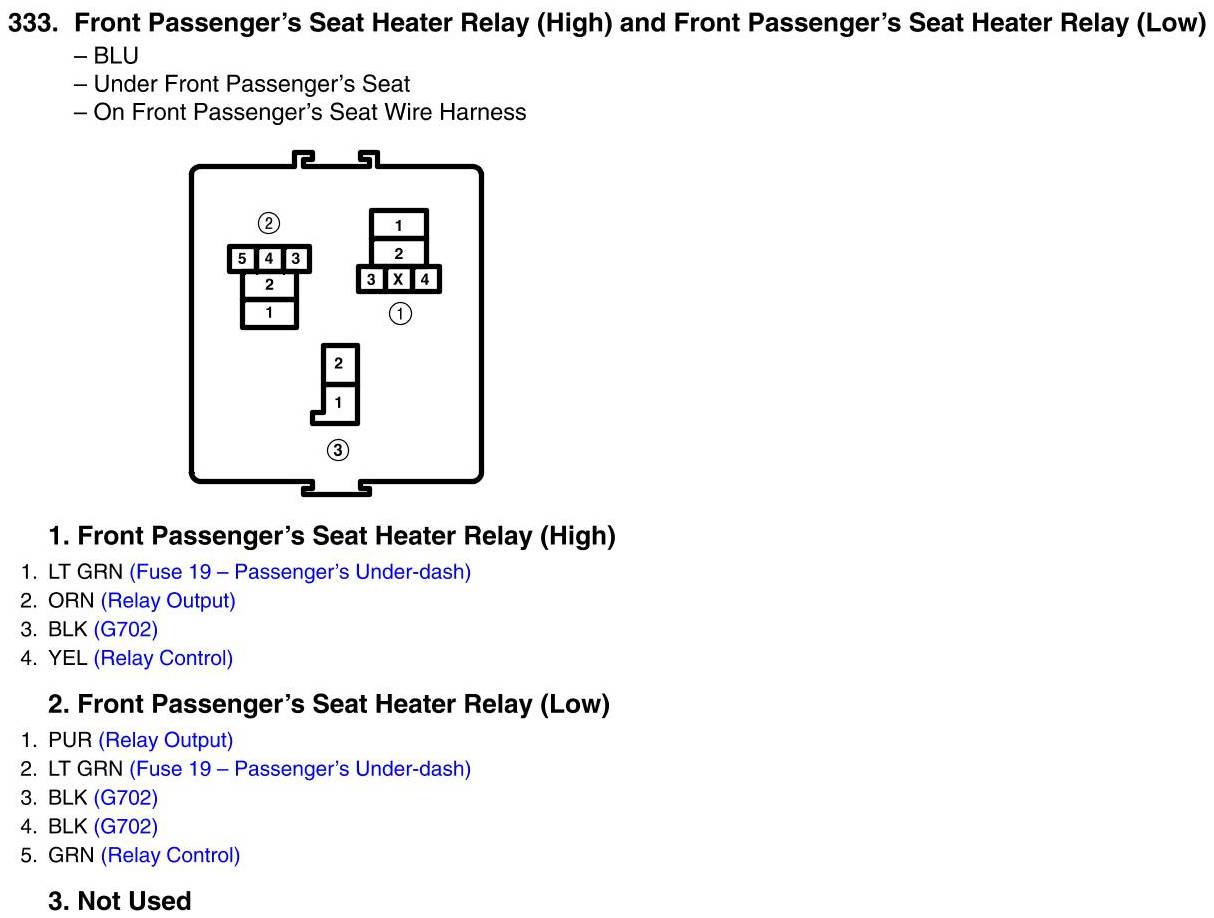

View 333 - Front Passenger's Seat Heater Relay (High) And Front Passenger's Seat Heater Relay (Low) Connector View
View 333 - Front Passenger's Seat Heater Relay (High) And Front Passenger's Seat Heater Relay (Low) Connector View
