Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 263 - C506 (Junction Connector) Connector View (Navigation)

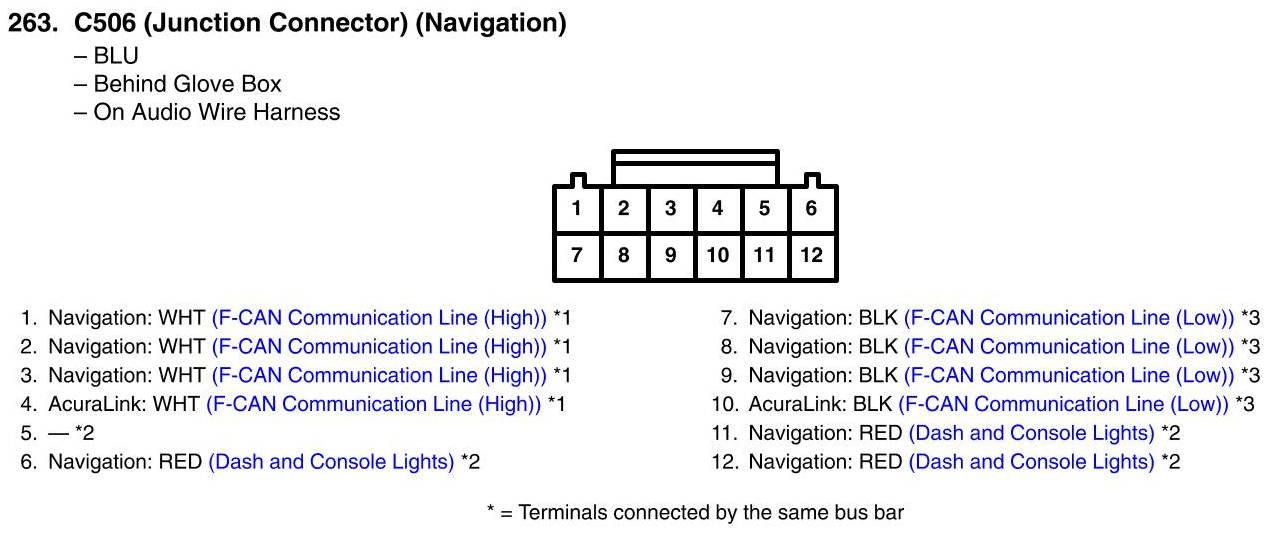

View 263 - C506 (Junction Connector) Connector View (Navigation)
