Acura
>>
2010
>>
TL FWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

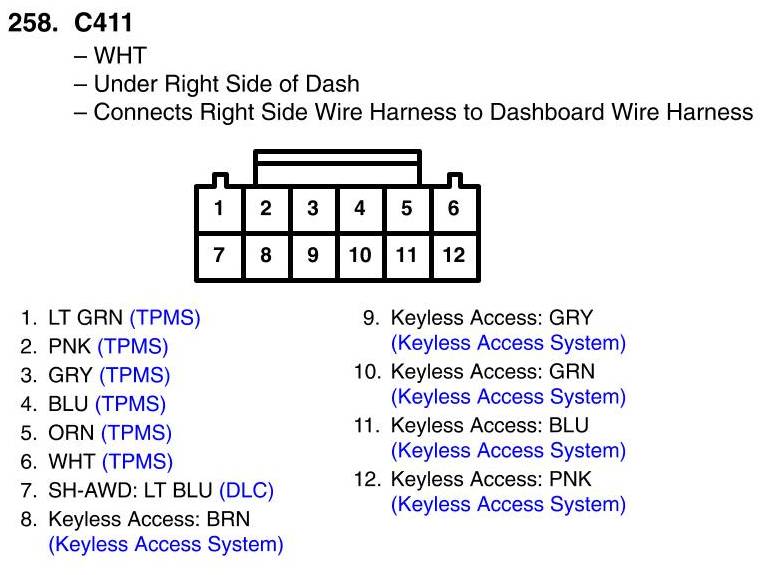

View 258 - C411 Connector View
View 258 - C411 Connector View
