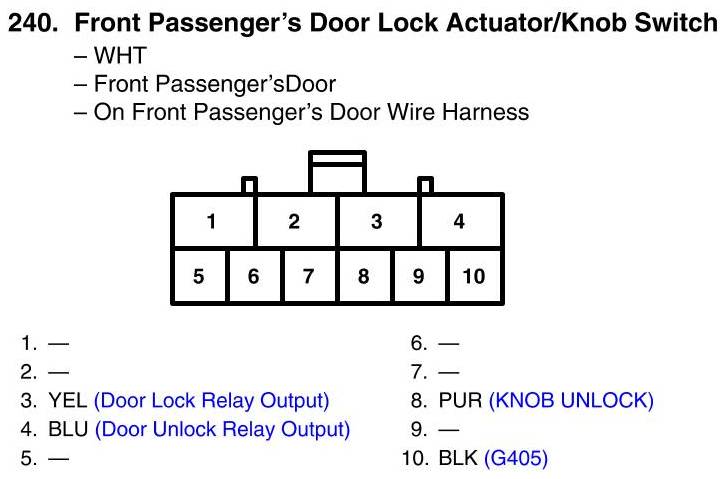

View 240 - Front Passenger's Door Lock Actuator/Knob Switch Connector View
View 240 - Front Passenger's Door Lock Actuator/Knob Switch Connector View
