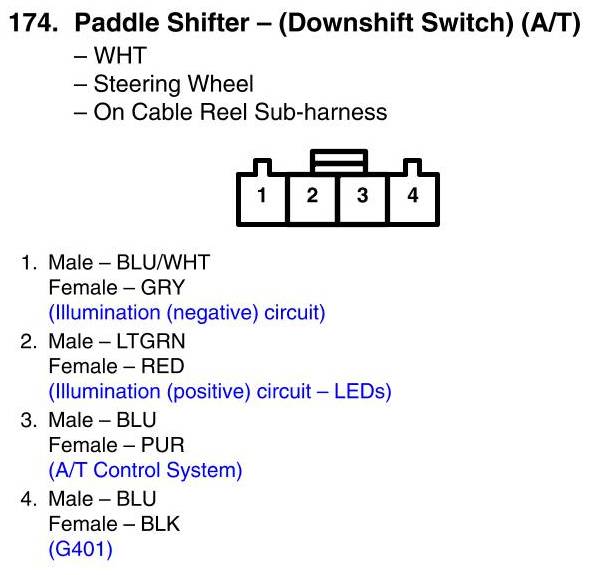

View 174 - Paddle Shifter - (Downshift Switch) Connector View (A/T)
View 174 - Paddle Shifter - (Downshift Switch) Connector View (A/T)
