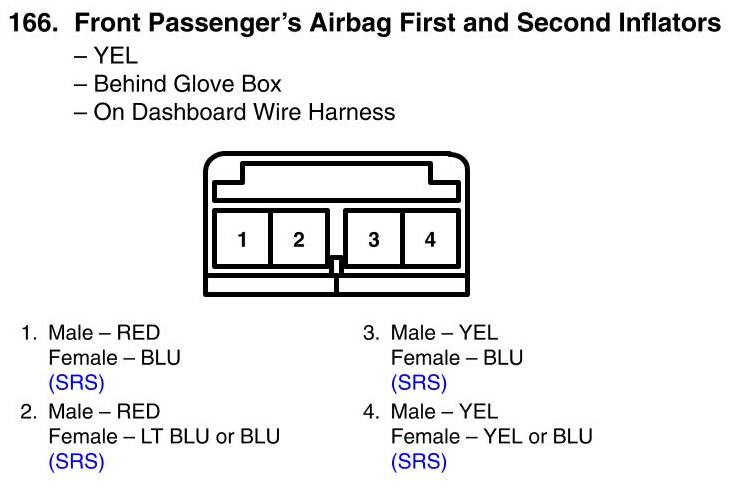

View 166 - Front Passenger's Airbag First And Second Inflators Connector View
View 166 - Front Passenger's Airbag First And Second Inflators Connector View
