Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 164 - Driver's Airbag First And Second Inflators Connector View

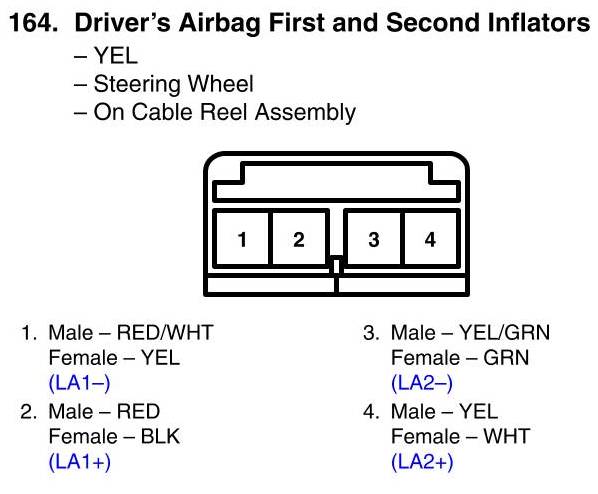

View 164 - Driver's Airbag First And Second Inflators Connector View
