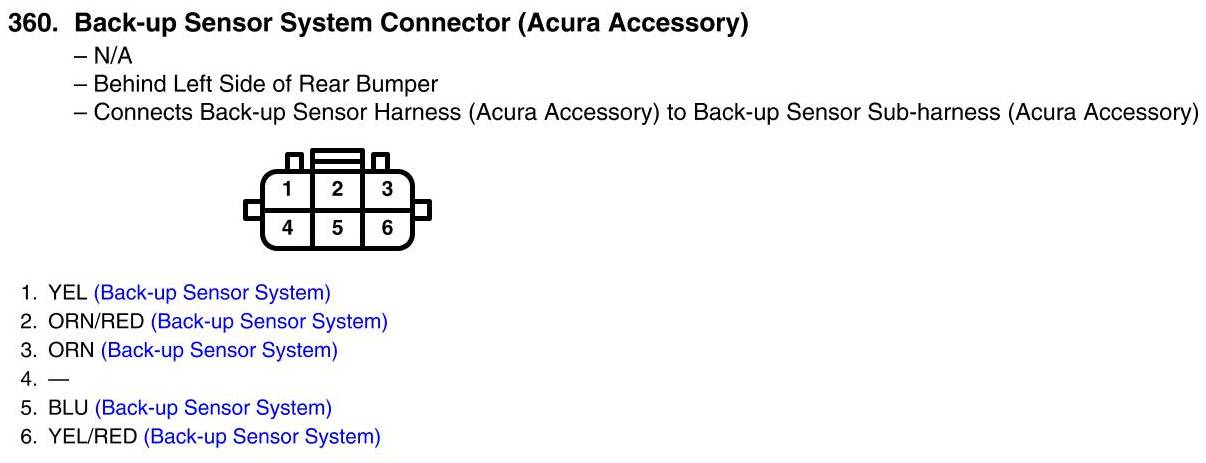

Back-up Sensor System Connector Connector View (Acura Accessory)
Back-up Sensor System Connector Connector View (Acura Accessory)
