Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Door Actuator / Motor, HVAC >> Front Passenger's Mode Control Motor Connector View

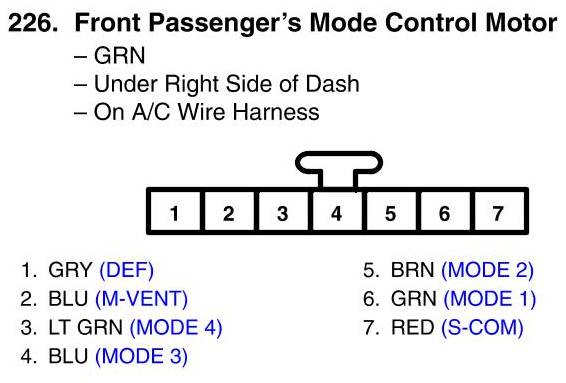

Front Passenger's Mode Control Motor Connector View
