Sound Proofing / Insulation: Locations

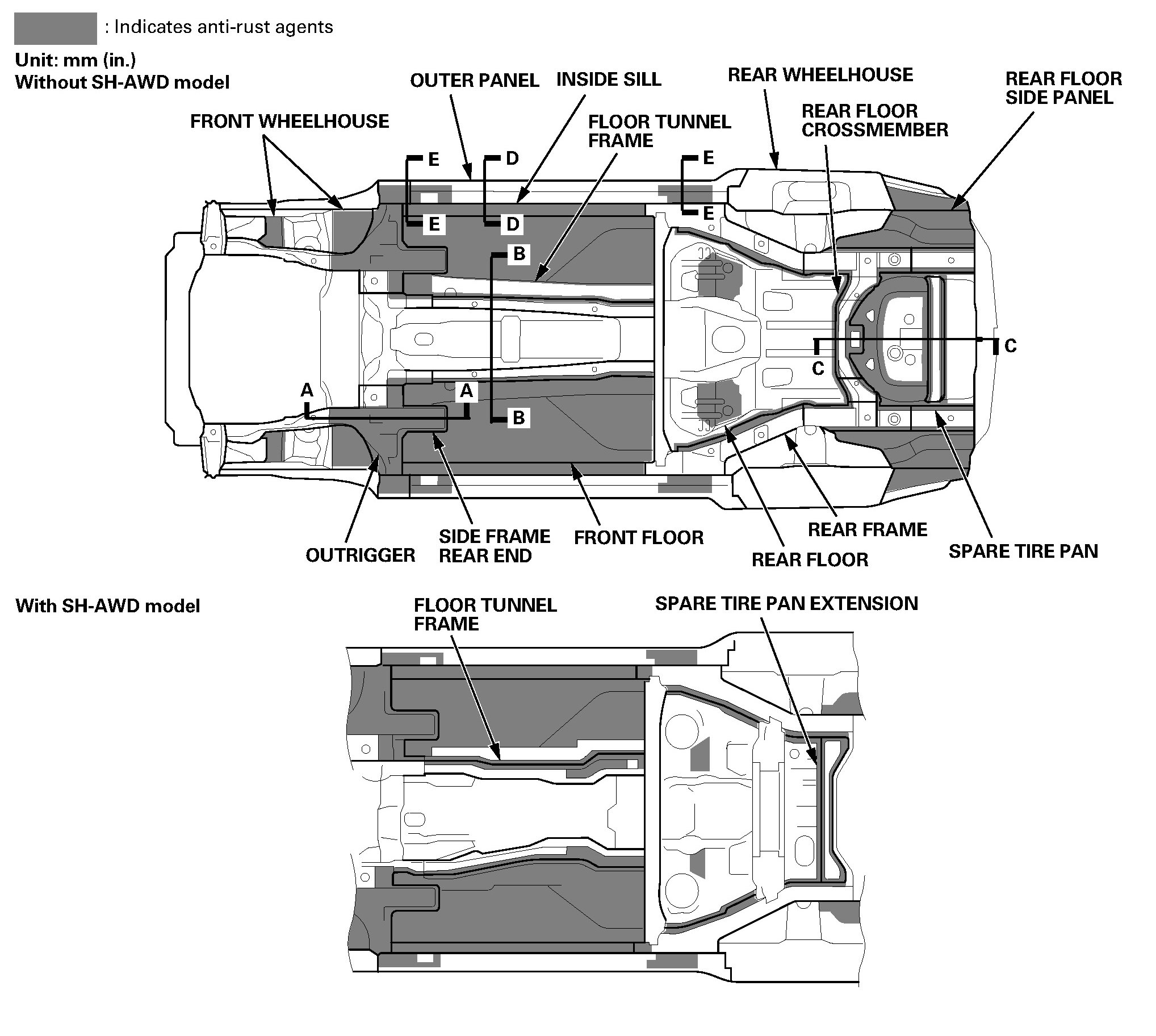

Undercoating Areas

Apply undercoat to the areas shown.

NOTE: Coating thickness: 0.4 mm (0.016 in.) MIN.

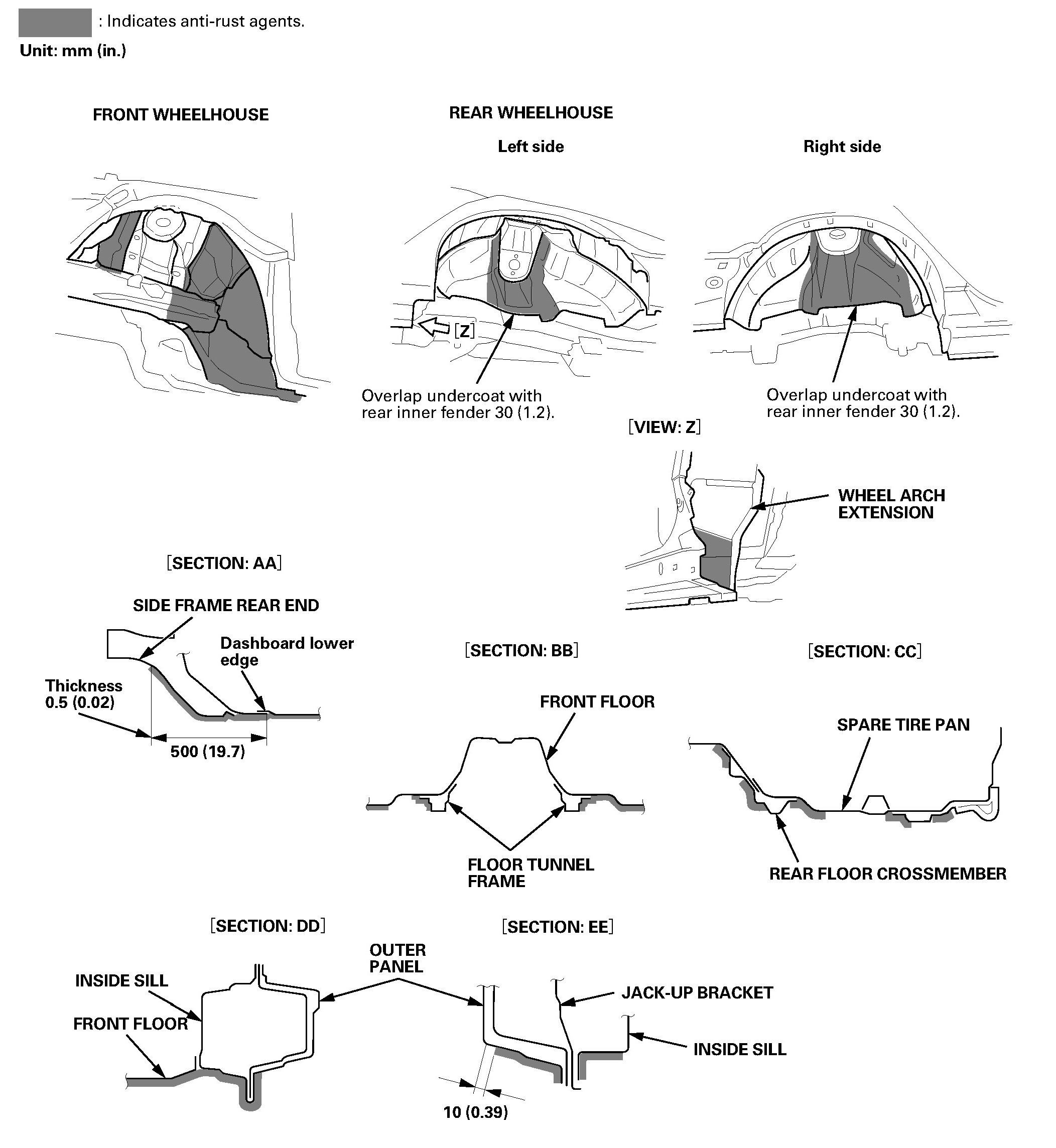

Front wheelhouse, rear wheelhouse, and dashboard lower coating thickness: 0.5 mm (0.02 in.).
