LEMON Manuals: Even more car manuals for everyone
Home >> Acura >> 2010 >> TL FWD V6-3.5L >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Rear Door >> Locations

Rear Door: Locations

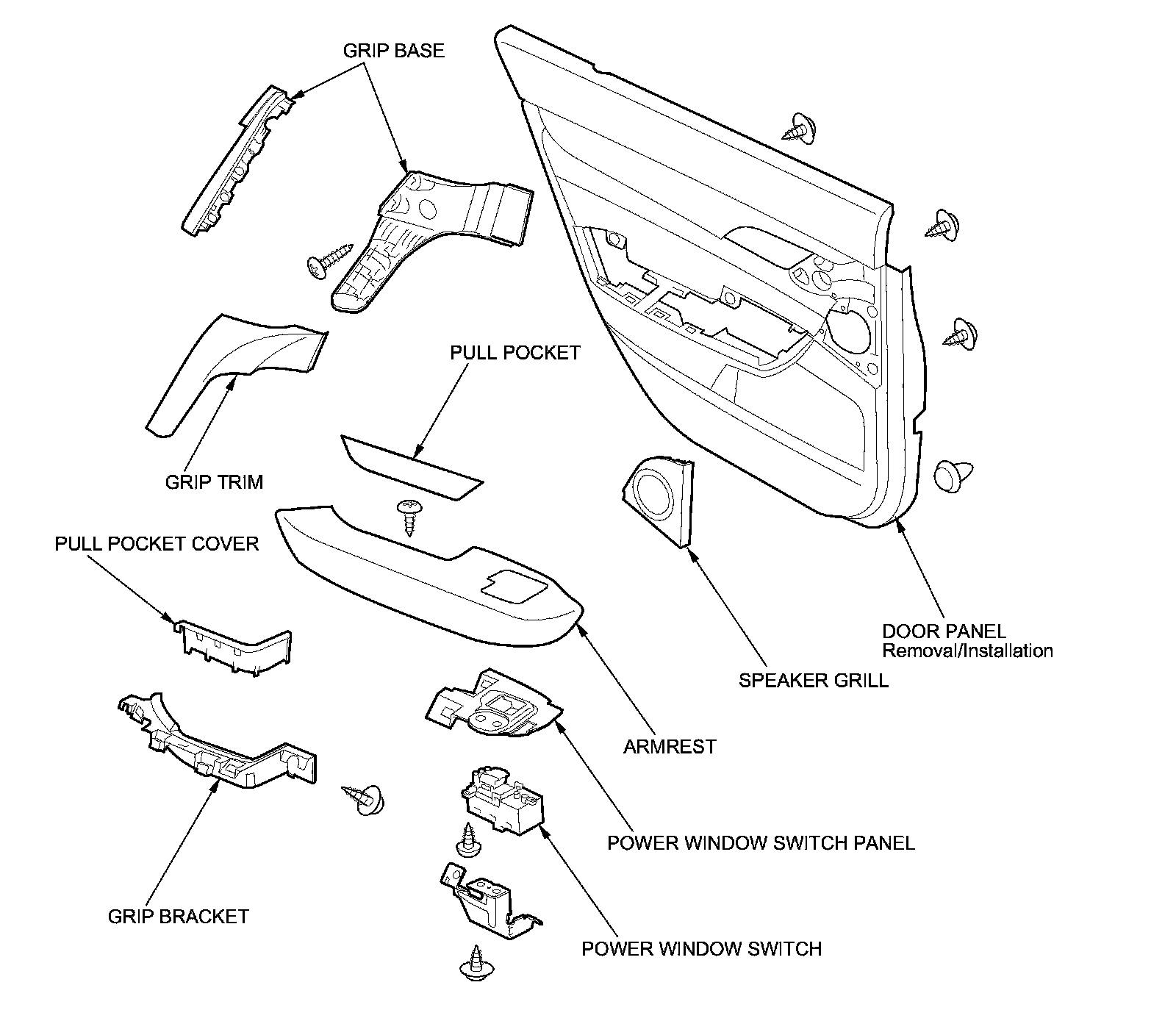

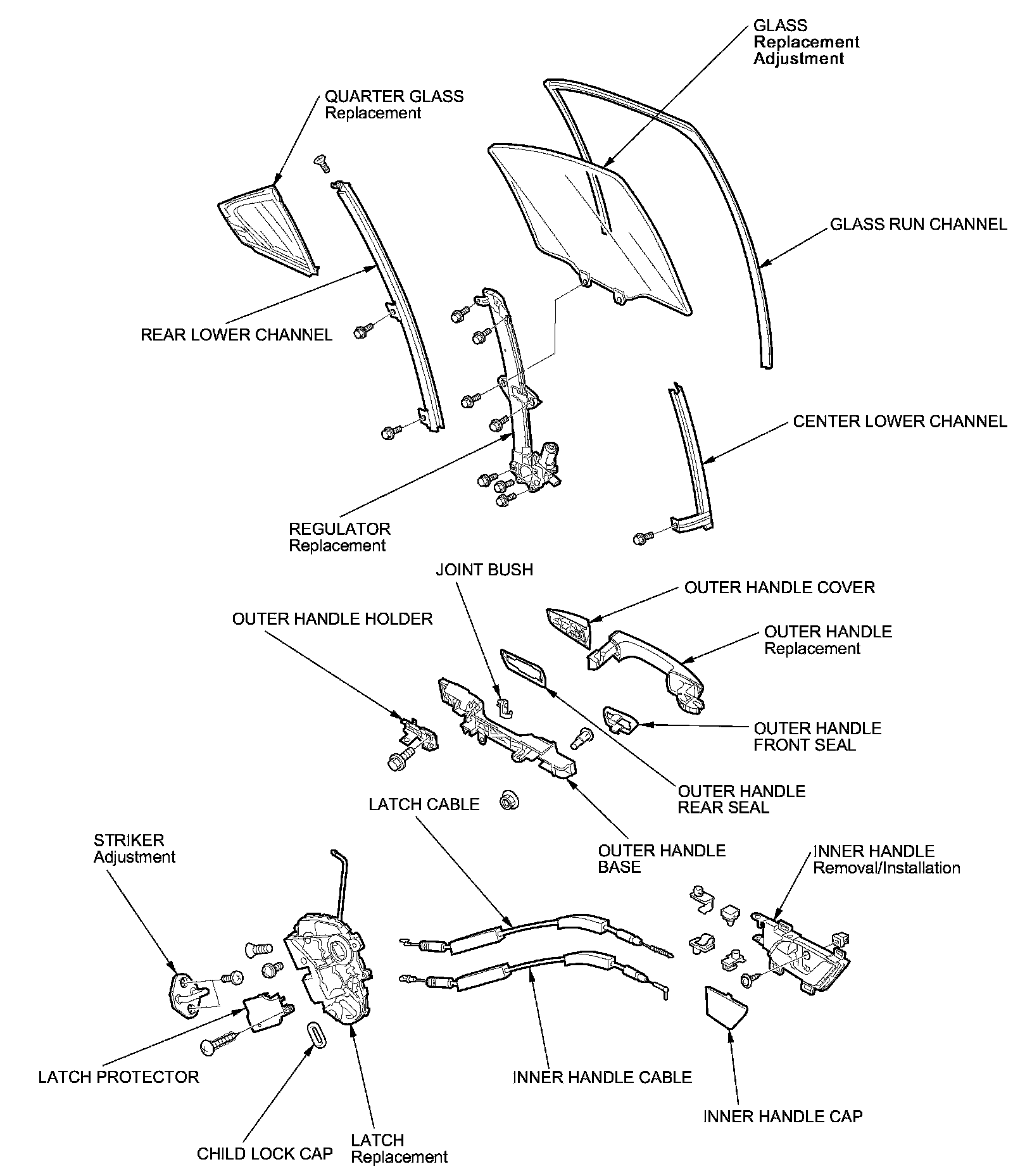

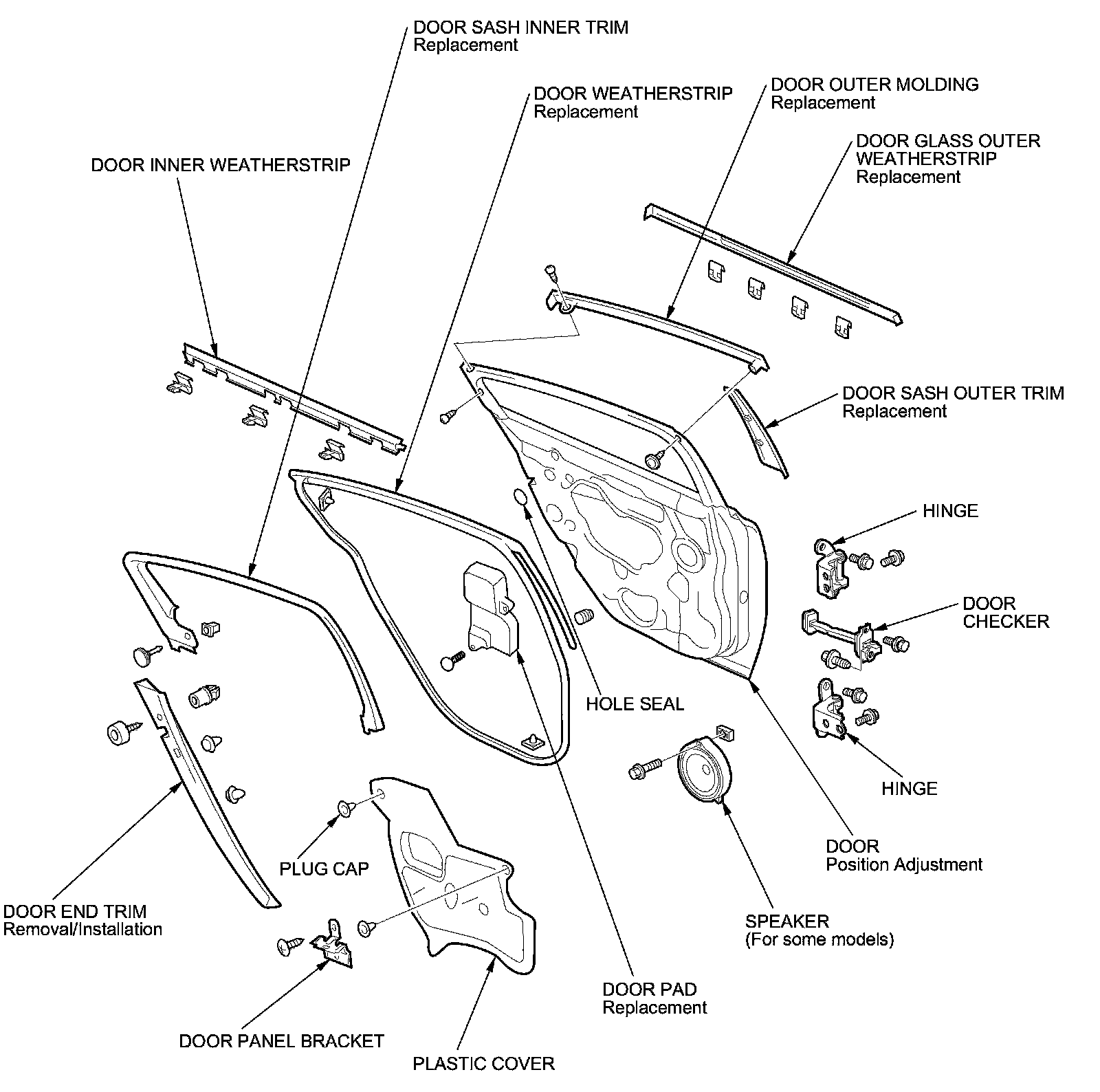

Rear Door Component Location Index
